XL7025 - 0.6A 150KHz 100V Buck DC to DC Converter

Datasheet Summary

Description

The XL7025 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.6A load with high efficiency, low ripple and excellent line and load regulation.

Features

Maximum Input Voltage 100V.
Output Adjustable from 1.25V to 20V.
Maximum Duty Cycle 100%.
Minimum Drop Out 1V.
Fixed 150KHz Switching Frequency.
Maximum 0.6A Output Current.
Recommend Maximum 0.6A Output Current At 5V Output,48V Input.
Recommend Maximum 0.3A Output Current At 15V Output,48V Input.
Internal Optimize HV Power Transistor.
High efficiency up to 85%.
Excellent line and load regulation.
Built in thermal shutdown function.

XLSEMI

📥 Download Datasheet

Datasheet Details

Part number	XL7025
Manufacturer	XLSEMI
File Size	287.88 KB
Description	0.6A 150KHz 100V Buck DC to DC Converter
Datasheet	XL7025 Datasheet
Additional preview pages of the XL7025 datasheet.

📁 Similar Datasheet

XL7090 - LED Lamp (Cree Research)
XL7090WHT - LED Lamp (Cree Research)
XL7555 - CMOS RC timer (XINLUDA)
XL7660 - Super Voltage Converters (XINLUDA)

Other Datasheets by XLSEMI

XL7026 - 0.6A 150KHz 100V Buck DC to DC Converter
XL7001 - 100KHz 56V 0.5A Switching Current Dual Channel Buck DC/DC Converter
XL7002 - 180KHz 80V 0.5A Switching Current Buck DC/DC Converter
XL7003 - 220KHz 90V 1A Switching Current SEPIC DC/DC Converter
XL7005 - 0.4A 150KHz 65V Buck DC/DC Converter
XL7005A - 0.4A 150KHz 80V Buck DC-to-DC Converter
XL7007 - 0.8A 180KHz 65V Buck DC/DC Converter
XL7010 - 150KHz 120V 1A Switching Current SEPIC DC/DC Converter

Full PDF Text Transcription

Click to expand full text

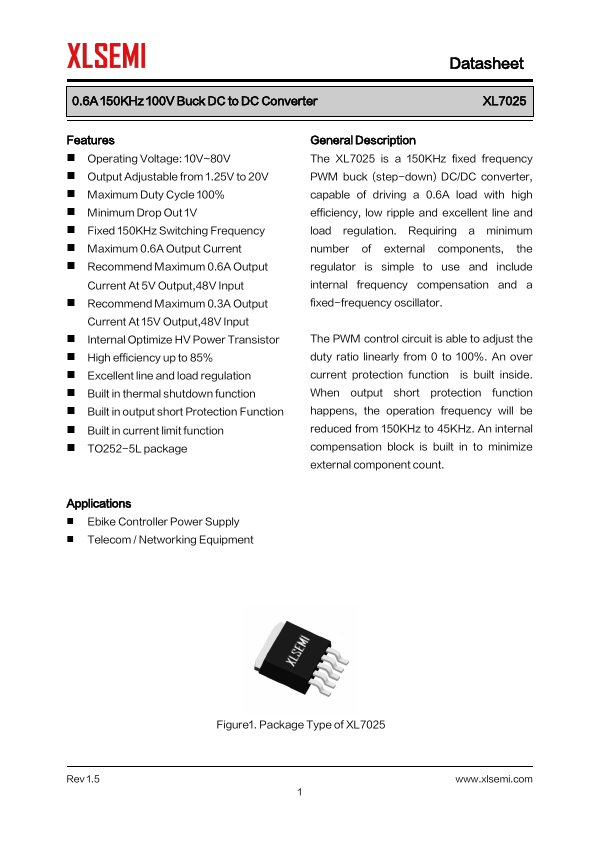

Datasheet 0.6A 150KHz 100V Buck DC to DC Converter XL7025 Features  Maximum Input Voltage 100V  Output Adjustable from 1.25V to 20V  Maximum Duty Cycle 100%  Minimum Drop Out 1V  Fixed 150KHz Switching Frequency  Maximum 0.6A Output Current  Recommend Maximum 0.6A Output Current At 5V Output,48V Input  Recommend Maximum 0.3A Output Current At 15V Output,48V Input  Internal Optimize HV Power Transistor  High efficiency up to 85%  Excellent line and load regulation  Built in thermal shutdown function  Built in output short Protection Function  Built in current limit function  TO252-5L package General Description The XL7025 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.
