XL7026 - 0.6A 150KHz 100V Buck DC to DC Converter

General Description

The XL7026 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.6A load with high efficiency, low ripple and excellent line and load regulation.

Key Features

  • Maximum Input Voltage 100V.
  • Maximum Duty Cycle up to 100%.
  • Minimum Drop Out 0.5V.
  • Adjust VOUT from 1.25V to 20V.
  • Max. IOUT=0.6A at VOUT=5V.
  • Max. IOUT=0.3A at VOUT=12V or 15V.
  • Max. output power less than 5W.
  • Fixed 150KHz Switching Frequency.
  • Internal Optimize HV Power MOSFET.
  • High efficiency up to 85%.
  • Excellent line and load regulation.
  • Built in output short Protection Function.
  • Built in current limit function.
  • SOP8-EP (Expos.

📥 Download Datasheet

Datasheet Details

Part number XL7026
Manufacturer Xlsemi
File Size 284.66 KB
Description 0.6A 150KHz 100V Buck DC to DC Converter
Datasheet download datasheet XL7026 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XL7090 LED Lamp Cree Research
XL7090WHT LED Lamp Cree Research
XL7555 CMOS RC timer XINLUDA
XL7660 Super Voltage Converters XINLUDA

Other Datasheets by Xlsemi

Part Number Description
XL7025 0.6A 150KHz 100V Buck DC to DC Converter
XL7001 100KHz 56V 0.5A Switching Current Dual Channel Buck DC/DC Converter
XL7002 180KHz 80V 0.5A Switching Current Buck DC/DC Converter
XL7003 220KHz 90V 1A Switching Current SEPIC DC/DC Converter
XL7005 0.4A 150KHz 65V Buck DC/DC Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

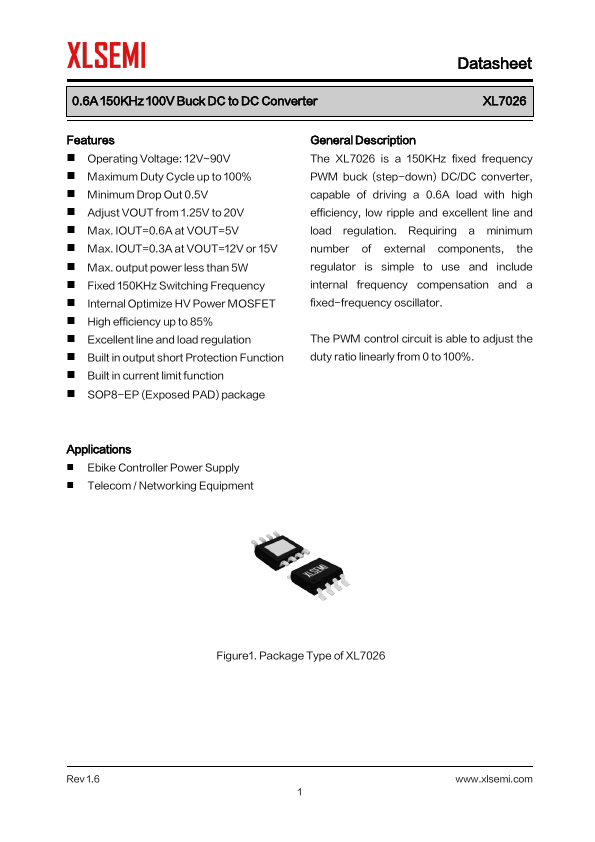

Datasheet 0.6A 150KHz 100V Buck DC to DC Converter XL7026 Features  Maximum Input Voltage 100V  Maximum Duty Cycle up to 100%  Minimum Drop Out 0.5V  Adjust VOUT from 1.25V to 20V  Max. IOUT=0.6A at VOUT=5V  Max. IOUT=0.3A at VOUT=12V or 15V  Max. output power less than 5W  Fixed 150KHz Switching Frequency  Internal Optimize HV Power MOSFET  High efficiency up to 85%  Excellent line and load regulation  Built in output short Protection Function  Built in current limit function  SOP8-EP (Exposed PAD) package General Description The XL7026 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.6A load with high efficiency, low ripple and excellent line and load regulation.
