XL2009 datasheet by Xlsemi.
| Part number | XL2009 |
|---|---|
| Datasheet | XL2009-Xlsemi.pdf |
| File Size | 236.53 KB |
| Manufacturer | Xlsemi |
| Description | 3A 180KHz 36V Buck DC to DC Converter |
|
|

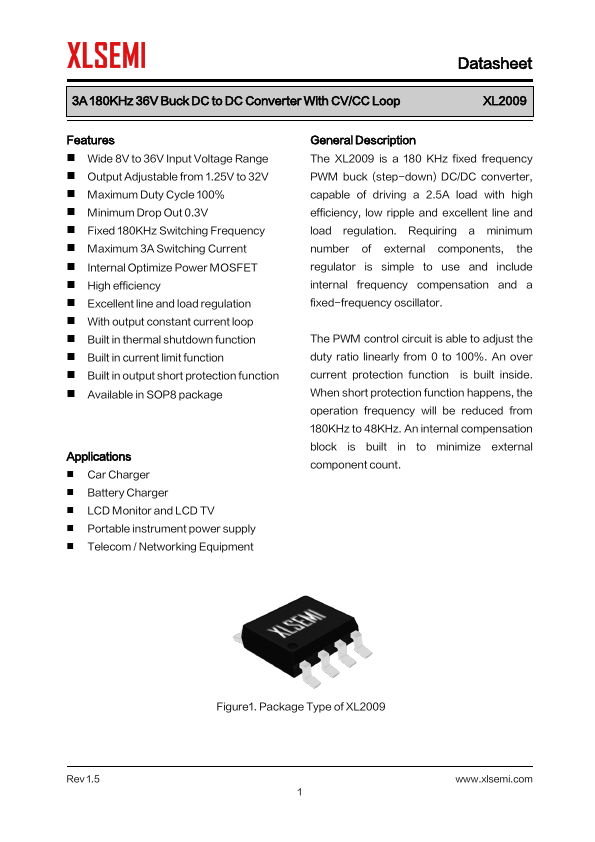

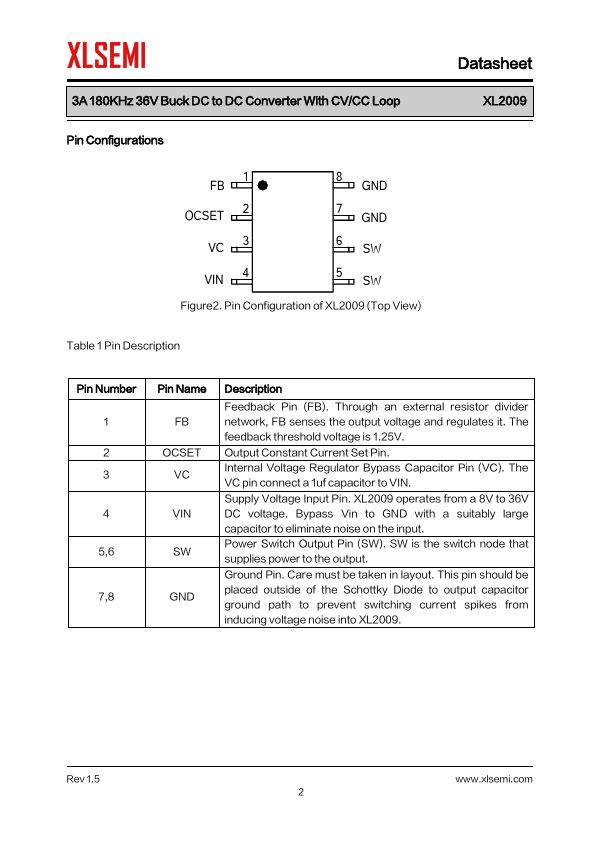

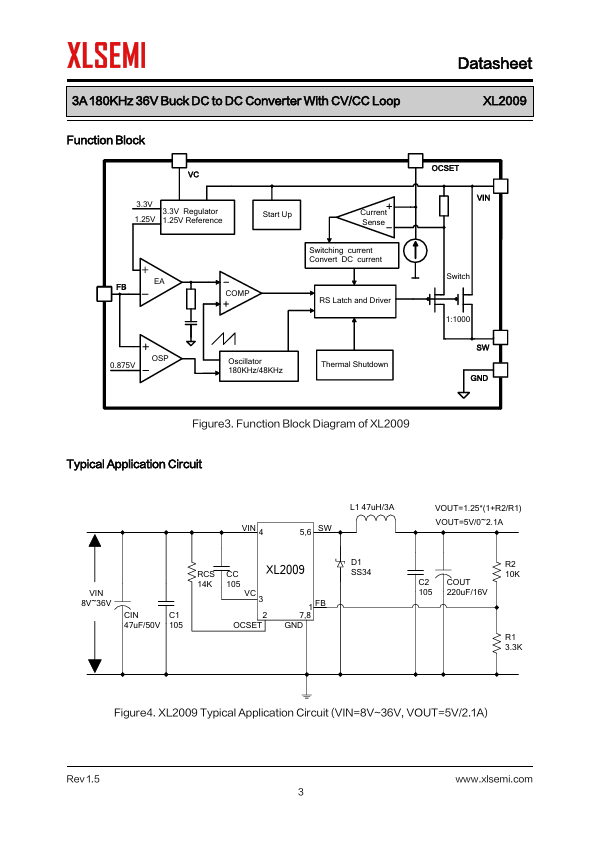

The XL2009 is a 180 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.5A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external ponents, the regulator is simple to use and include internal frequency pensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%.
