XL7005A - 0.4A 150KHz 80V Buck DC-to-DC Converter

Datasheet Summary

Description

The XL7005A is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.4A load with high efficiency, low ripple and excellent line and load regulation.

Features

  • Operating Voltage: 5V~80V.
  • Output Adjustable from 1.25V to 20V.
  • Maximum Duty Cycle 90%.
  • Minimum Drop Out 2V.
  • Fixed 150KHz Switching Frequency.
  • Maximum 0.4A Output Current.
  • Recommend output power less than 5W.
  • Internal Optimize HV Power Transistor.
  • High efficiency up to 85%.
  • Excellent line and load regulation.
  • TTL shutdown capability.
  • Built in thermal shutdown function.
  • Built in output short Protection Function.
  • Built in curre.

📥 Download Datasheet

Datasheet preview – XL7005A

Datasheet Details

Part number XL7005A
Manufacturer Xlsemi
File Size 267.91 KB
Description 0.4A 150KHz 80V Buck DC-to-DC Converter
Datasheet download datasheet XL7005A Datasheet
Additional preview pages of the XL7005A datasheet.

📁 Similar Datasheet

  • XL7090 - LED Lamp (Cree Research)
  • XL7090WHT - LED Lamp (Cree Research)
  • XL7555 - CMOS RC timer (XINLUDA)
  • XL7660 - Super Voltage Converters (XINLUDA)
Other Datasheets by Xlsemi
  • XL7005 - 0.4A 150KHz 65V Buck DC/DC Converter
  • XL7001 - 100KHz 56V 0.5A Switching Current Dual Channel Buck DC/DC Converter
  • XL7002 - 180KHz 80V 0.5A Switching Current Buck DC/DC Converter
  • XL7003 - 220KHz 90V 1A Switching Current SEPIC DC/DC Converter
  • XL7007 - 0.8A 180KHz 65V Buck DC/DC Converter
  • XL7010 - 150KHz 120V 1A Switching Current SEPIC DC/DC Converter
  • XL7015 - 0.8A 150KHz 80V Buck DC/DC Converter
  • XL7016 - 0.5A 150KHz 100V Buck DC/DC Converter

Full PDF Text Transcription

Click to expand full text

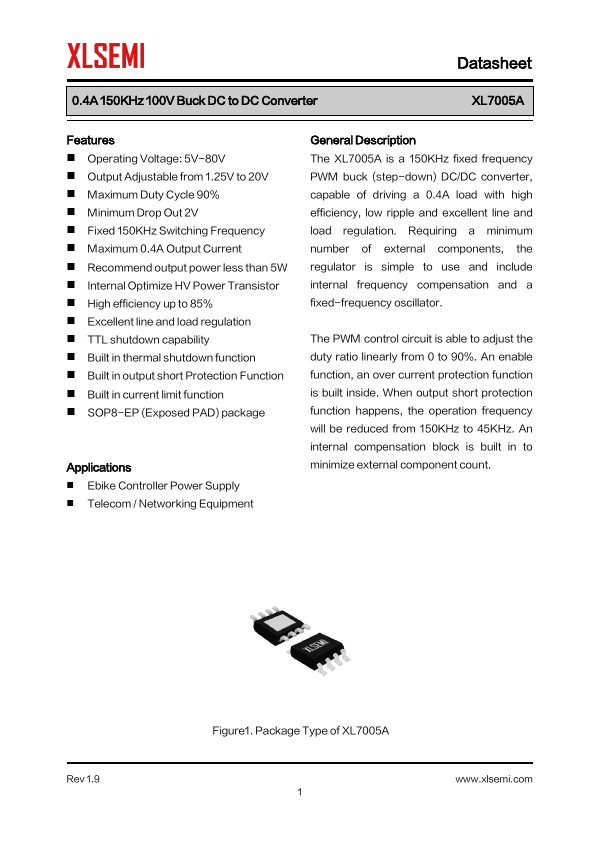

0.4A 150KHz 100V Buck DC to DC Converter Datasheet XL7005A Features  Operating Voltage: 5V~80V  Output Adjustable from 1.25V to 20V  Maximum Duty Cycle 90%  Minimum Drop Out 2V  Fixed 150KHz Switching Frequency  Maximum 0.4A Output Current  Recommend output power less than 5W  Internal Optimize HV Power Transistor  High efficiency up to 85%  Excellent line and load regulation  TTL shutdown capability  Built in thermal shutdown function  Built in output short Protection Function  Built in current limit function  SOP8-EP (Exposed PAD) package Applications  Ebike Controller Power Supply  Telecom / Networking Equipment General Description The XL7005A is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.
