XL7045 - 0.3A 100KHz 80V Buck DC/DC Converter

Description

The XL7045 is a 100KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.3A load with high efficiency, low ripple and excellent line and load regulation.

Features

  • Wide 10V to 80V Operation Voltage.
  • Output Adjustable from 1.25V to 20V.
  • Maximum Duty Cycle 100%.
  • Minimum Drop Out 1V.
  • Fixed 100KHz Switching Frequency.
  • Max. IOUT=0.3A at VOUT=5V.
  • Max. IOUT=0.2A at VOUT=12V or 15V.
  • Internal Optimize HV Power Transistor.
  • High efficiency up to 84%.
  • Excellent line and load regulation.
  • Built in thermal shutdown function.
  • Built in current limit function.

📥 Download Datasheet

Datasheet Details

Part number XL7045
Manufacturer Xlsemi
File Size 248.75 KB
Description 0.3A 100KHz 80V Buck DC/DC Converter
Datasheet download datasheet XL7045 Datasheet

📁 Similar Datasheet

  • XL7090 - LED Lamp (Cree Research)
  • XL7090WHT - LED Lamp (Cree Research)
  • XL7555 - CMOS RC timer (XINLUDA)
  • XL7660 - Super Voltage Converters (XINLUDA)
Other Datasheets by Xlsemi
  • XL7046 - 1.0A 100KHz 90V Buck DC/DC Converter
  • XL7001 - 100KHz 56V 0.5A Switching Current Dual Channel Buck DC/DC Converter
  • XL7002 - 180KHz 80V 0.5A Switching Current Buck DC/DC Converter
  • XL7003 - 220KHz 90V 1A Switching Current SEPIC DC/DC Converter
  • XL7005 - 0.4A 150KHz 65V Buck DC/DC Converter
  • XL7005A - 0.4A 150KHz 80V Buck DC-to-DC Converter
  • XL7007 - 0.8A 180KHz 65V Buck DC/DC Converter
  • XL7010 - 150KHz 120V 1A Switching Current SEPIC DC/DC Converter

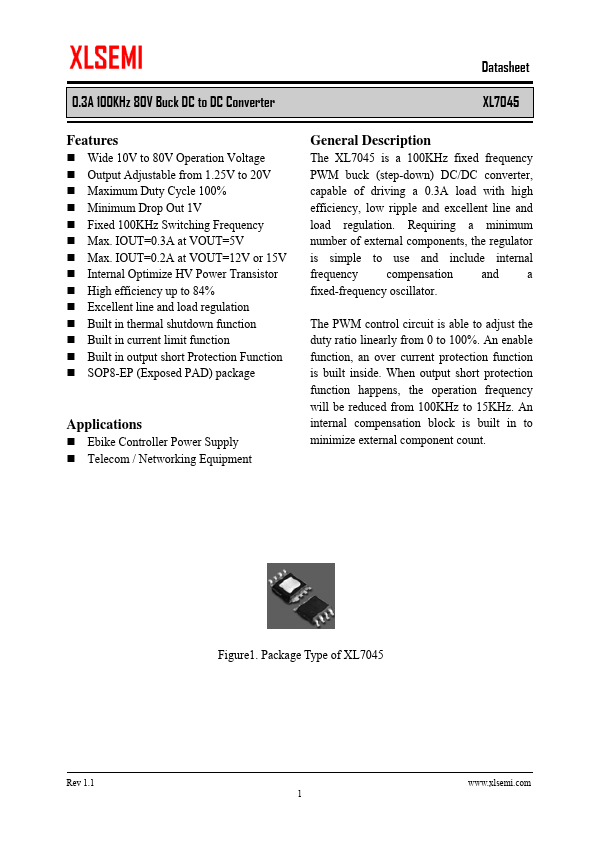

Full PDF Text Transcription

Click to expand full text
0.3A 100KHz 80V Buck DC to DC Converter Datasheet XL7045 Features „ Wide 10V to 80V Operation Voltage „ Output Adjustable from 1.25V to 20V „ Maximum Duty Cycle 100% „ Minimum Drop Out 1V „ Fixed 100KHz Switching Frequency „ Max. IOUT=0.3A at VOUT=5V „ Max. IOUT=0.2A at VOUT=12V or 15V „ Internal Optimize HV Power Transistor „ High efficiency up to 84% „ Excellent line and load regulation „ Built in thermal shutdown function „ Built in current limit function „ Built in output short Protection Function „ SOP8-EP (Exposed PAD) package Applications „ Ebike Controller Power Supply „ Telecom / Networking Equipment General Description The XL7045 is a 100KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 0.
