XL7046 - 1.0A 100KHz 90V Buck DC/DC Converter

Description

The XL7046 is a 100KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 1.0A load with high efficiency, low ripple and excellent line and load regulation.

Features

  • Operation Voltage from 8V to 80V.
  • Maximum Duty Cycle up to 85%.
  • Minimum Drop Out 2.0V.
  • Adjust VOUT from 1.25V to 20V.
  • Max. IOUT=1.0A at VOUT=5V.
  • Max. IOUT=0.5A at VOUT=15V.
  • Fixed 100KHz Switching Frequency.
  • Max. Output power less than 8W.
  • EN PIN TTL shutdown capability.
  • Internal Optimize HV Power MOSFET.
  • High efficiency up to 91%.
  • Excellent line and load regulation.
  • Built in curr.

📥 Download Datasheet

Datasheet Details

Part number XL7046
Manufacturer Xlsemi
File Size 288.17 KB
Description 1.0A 100KHz 90V Buck DC/DC Converter
Datasheet download datasheet XL7046 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XL7090 LED Lamp Cree Research
XL7090WHT LED Lamp Cree Research
XL7555 CMOS RC timer XINLUDA
XL7660 Super Voltage Converters XINLUDA

Other Datasheets by Xlsemi

Part Number Description
XL7045 0.3A 100KHz 80V Buck DC/DC Converter
XL7001 100KHz 56V 0.5A Switching Current Dual Channel Buck DC/DC Converter
XL7002 180KHz 80V 0.5A Switching Current Buck DC/DC Converter
XL7003 220KHz 90V 1A Switching Current SEPIC DC/DC Converter
XL7005 0.4A 150KHz 65V Buck DC/DC Converter

Full PDF Text Transcription

Click to expand full text

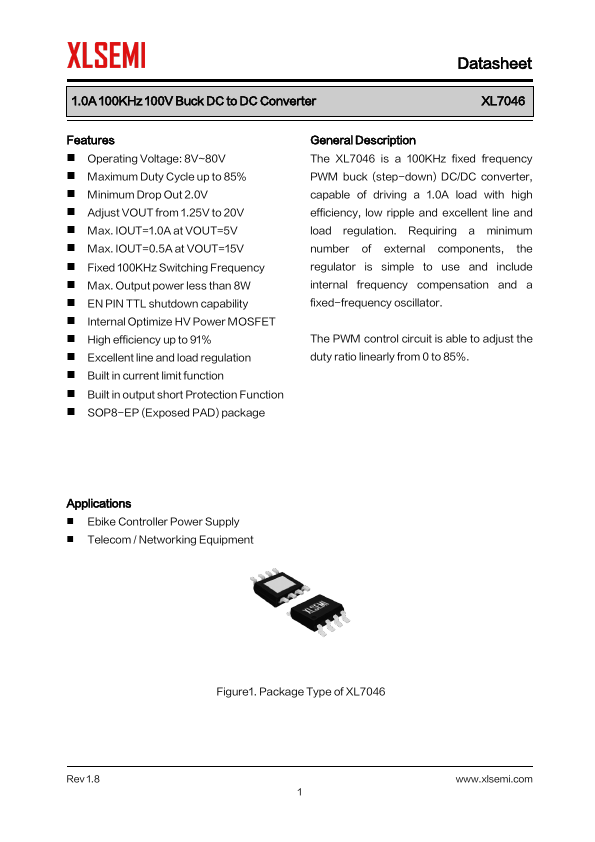

XLSEMI 1.0A 100KHz 90V Buck DC to DC Converter Datasheet XL7046 Features „ Operation Voltage from 8V to 80V „ Maximum Duty Cycle up to 85% „ Minimum Drop Out 2.0V „ Adjust VOUT from 1.25V to 20V „ Max. IOUT=1.0A at VOUT=5V „ Max. IOUT=0.5A at VOUT=15V „ Fixed 100KHz Switching Frequency „ Max. Output power less than 8W „ EN PIN TTL shutdown capability „ Internal Optimize HV Power MOSFET „ High efficiency up to 91% „ Excellent line and load regulation „ Built in current limit function „ Built in output short Protection Function „ SOP8-EP (Exposed PAD) package General Description The XL7046 is a 100KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 1.0A load with high efficiency, low ripple and excellent line and load regulation.
