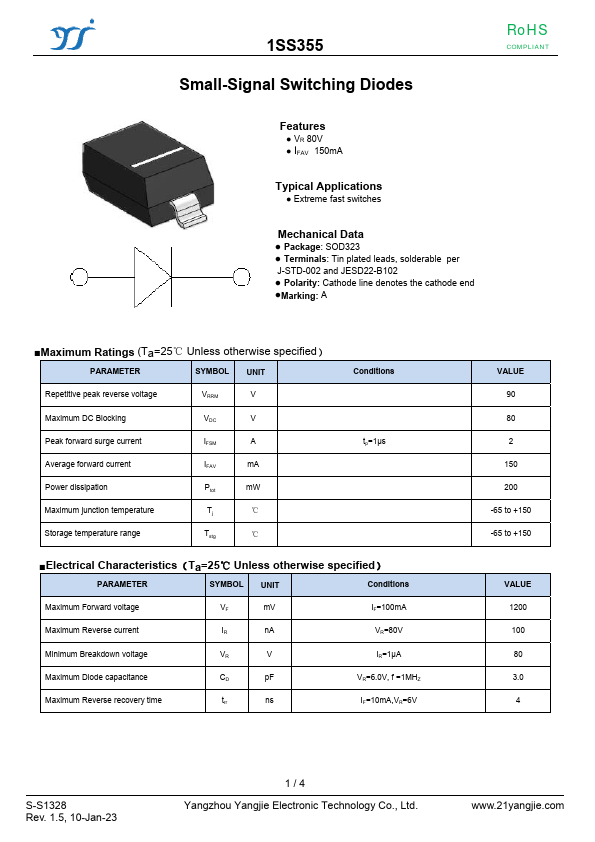

1SS355
1SS355 is Small-Signal Switching Diodes manufactured by Yangjie Electronic.
Features
- VR 80V
- IFAV 150m A
Typical Applications
- Extreme fast switches
Mechanical Data

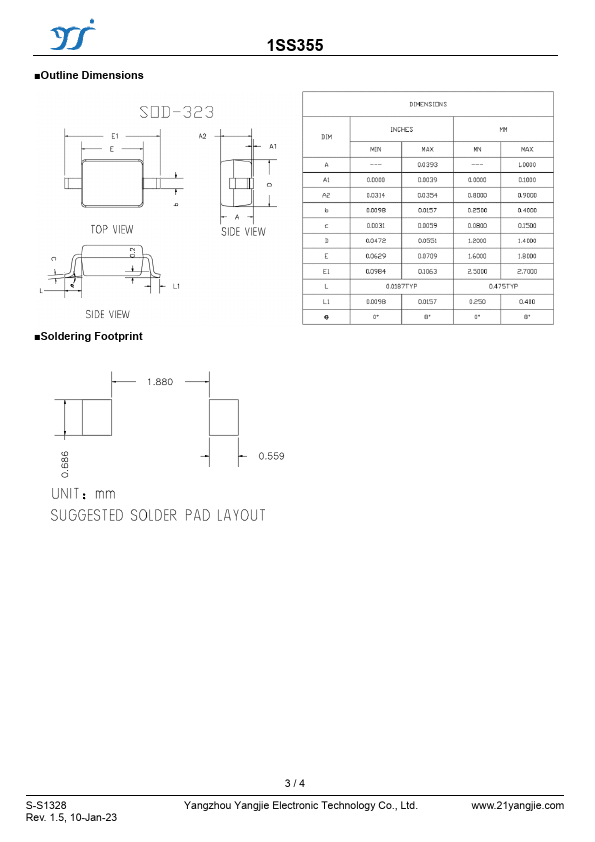

- Package: SOD323
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
- Marking: A
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL UNIT
Repetitive peak reverse voltage
VRRM
Maximum DC Blocking
Peak forward surge current
IFSM
Average forward current
IFAV m A
Power dissipation
Ptot m W
Maximum junction temperature
Tj
℃
Storage temperature range
Tstg
℃
Conditions tp=1μs
- Electrical Characteristics（Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL UNIT
Conditions
Maximum Forward voltage
VF m...
