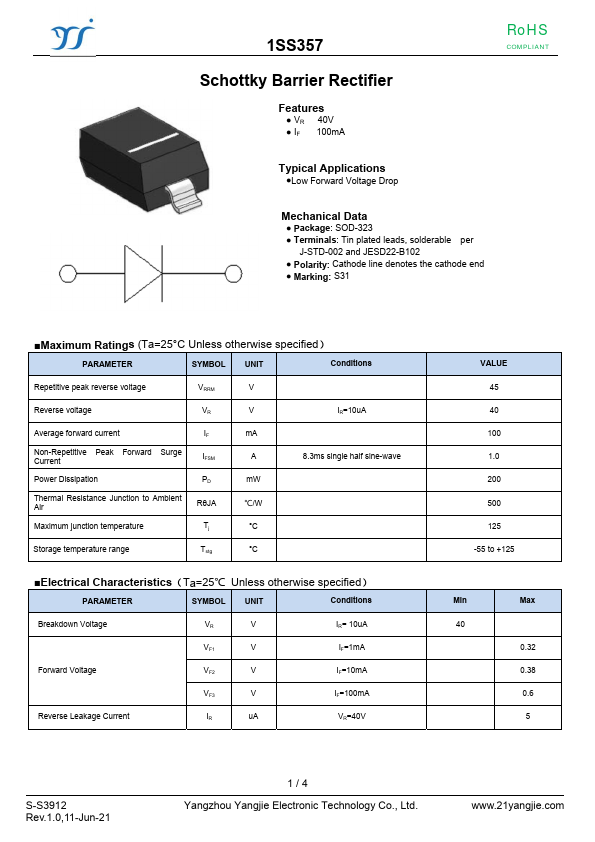

1SS357 Datasheet | Yangjie Electronic

Features - VR 40V - IF 100m A Ro HS PLIANT Typical Applications - Low Forward Voltage Drop Mechanical Data - Package: SOD-323 - Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 - Polarity: Cathode line denotes the cathode end - Marking: S31 - Maximum Ratings (Ta=25°C Unless otherwise specified） PARAMETER SYMBOL UNIT Conditions Repetitive peak reverse voltage VRRM Reverse voltage IR=10u A Average forward current Non-Repetitive Peak Forward Surge Current Power Dissipation Thermal Resistance Junction to Ambient Air Maximum junction temperature IF IFSM PD RθJA Tj m A A m W ℃/W °C 8.3ms single half sine-wave Storage temperature range Tstg °C - Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Conditions Breakdown...
