2SA1900 - PNP General Purpose Amplifier

Key Features

  • Moisture sensitivity level 1.
  • Halogen free and RoHS compliant.
  • Surface mount package ideally suited for auto matic insertion.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1900 Medium Power Transistor Rohm
2SA1900 Medium power transistor Kexin
2SA1900U PNP Transistor SEMTECH
2SA1905 Silicon PNP Epitaxial Type Transistor Toshiba Semiconductor
2SA1906 High-speed Switching Transistor ROHM

Other Datasheets by Yangjie Electronic

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

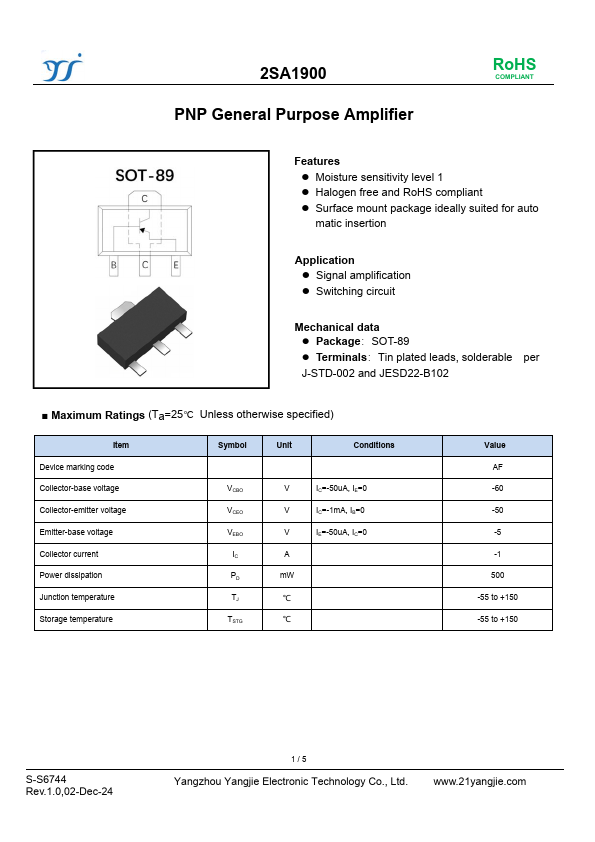

2SA1900 PNP General Purpose Amplifier RoHS COMPLIANT Features  Moisture sensitivity level 1  Halogen free and RoHS compliant  Surface mount package ideally suited for auto matic insertion Application  Signal amplification  Switching circuit Mechanical data  Package：SOT-89  Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102 ■ Maximum Ratings (Ta=25℃ Unless otherwise specified) Item Device marking code Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation Junction temperature Storage temperature Symbol Unit Conditions VCBO VCEO VEBO IC PD TJ TSTG V IC=-50uA, IE=0 V IC=-1mA, IB=0 V IE=-50uA, IC=0 A mW ℃ ℃ Value AF -60 -50 -5 -1 500 -55 to +150 -55 to +150 S-S6744 Rev.1.
