CXT5401 Datasheet PNP General Purpose Amplifier

Manufacturer: Yangjie Electronic

Overview: CXT5401 RoHS COMPLIANT PNP General Purpose Amplifier.

Datasheet Details

Part number	CXT5401
Manufacturer	Yangjie Electronic
File Size	469.27 KB
Description	PNP General Purpose Amplifier
Datasheet	CXT5401-YangzhouYangjie.pdf

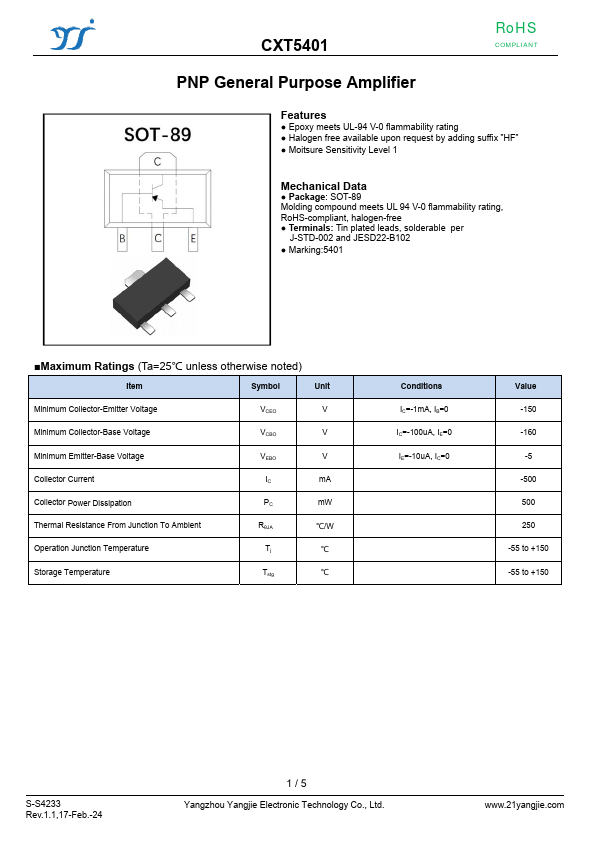

Key Features

Epoxy meets UL-94 V-0 flammability rating.
Halogen free available upon request by adding suffix ”HF”.
Moitsure Sensitivity Level 1 Mechanical Data.
Package: SOT-89 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free.
Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102.
Marking:5401.

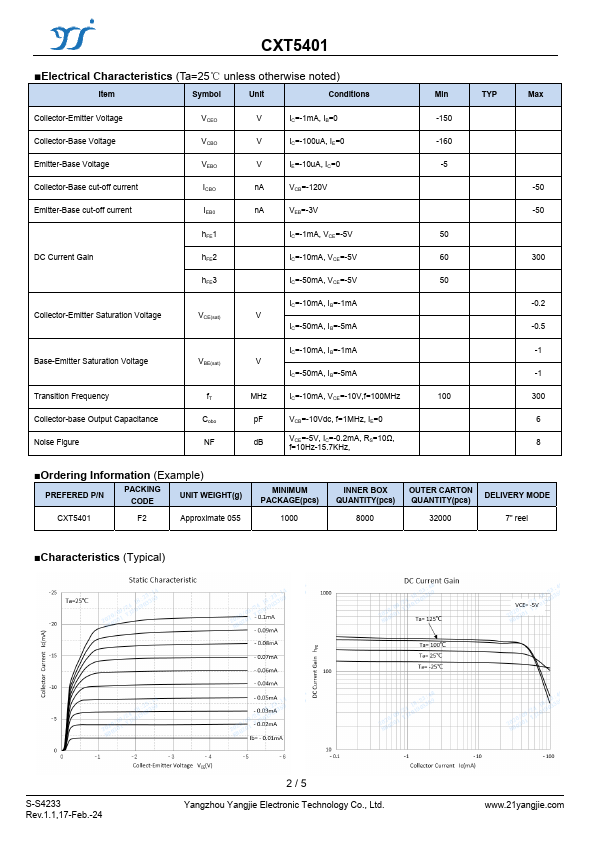

Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Minimum Collector-Emitter Voltage Minimum Collector-Base Volt.
