CXT5401 - Surface Mount PNP Silicon Transistor

Datasheet Summary

Features

  • Switching and amplification in high voltage.
  • Low current(max. 600mA).
  • High voltage (max. 180V) Pb Lead-free Production specification CXT5401.

📥 Download Datasheet

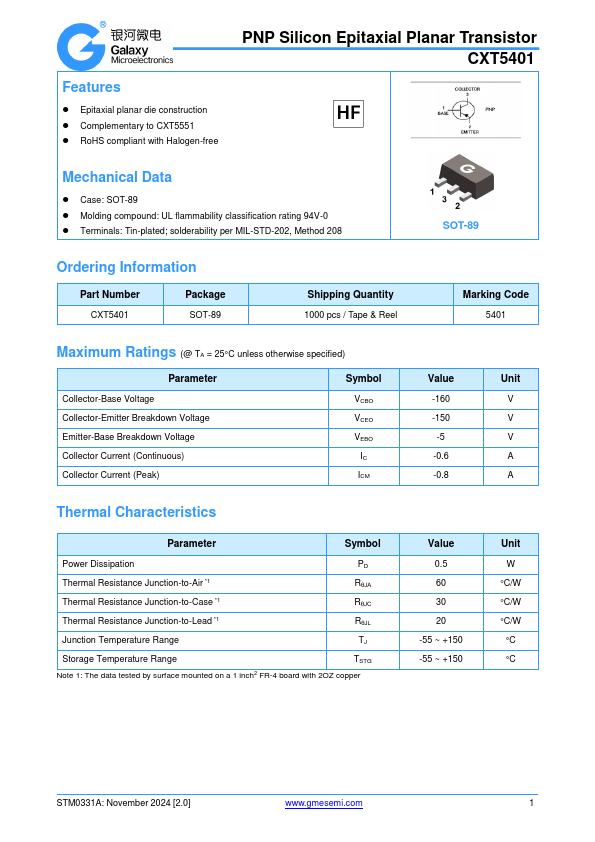

Datasheet preview – CXT5401

Datasheet Details

Part number CXT5401
Manufacturer GME
File Size 180.35 KB
Description Surface Mount PNP Silicon Transistor
Datasheet download datasheet CXT5401 Datasheet
Additional preview pages of the CXT5401 datasheet.

📁 Similar Datasheet

  • CXT5401 - PNP Transistor (Central Semiconductor Corp)
  • CXT5401 - PNP Plastic-Encapsulate Transistors (MCC)
  • CXT5401 - Surface Mount PNP Silicon Transistor (Kexin)
  • CXT5401E - SURFACE MOUNT PNP SILICON TRANSISTOR (Central Semiconductor)
  • CXT5551 - SURFACE MOUNT NPN SILICON TRANSISTORS (Central Semiconductor Corp)
  • CXT5551 - NPN Plastic-Encapsulate Transistors (HOTTECH)
  • CXT5551 - Surface Mount NPN Silicon Transistor (Kexin)
  • CXT5551 - TRANSISTOR (TY Semiconductor)
  • CXT5551E - SURFACE MOUNT NPN SILICON TRANSISTOR (Central Semiconductor)
  • CXT5551HC - SURFACE MOUNT NPN SILICON TRANSISTOR (Central Semiconductor)
Other Datasheets by GME
  • CXT5551 - NPN Silicon Epitaxial Planar Transistor

Full PDF Text Transcription

Click to expand full text
Surface Mount PNP Silicon Transistor FEATURES  Switching and amplification in high voltage.  Low current(max. 600mA)  High voltage (max. 180V) Pb Lead-free Production specification CXT5401 APPLICATIONS  High voltage amplifier application. ORDERING INFORMATION Type No. Marking CXT5401 5401 SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO VEBO IC PD RθJA Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Power Dissipation Thermal resistance -160 -150 -5 -500 0.5 250 Tj,Tstg Junction and Storage Temperature -65 to +150 Units V V V mA W ℃/W ℃ E060 Rev.A www.gmesemi.
