Good-Ark Semiconductor CXT5401
PNP Transistor
| Part No. | CXT5401 |
|---|---|
| Datasheet | CXT5401 Download |
| Manufacturer |  Good-Ark Semiconductor |
| Description | PNP Transistor |
| Buy | Stock & Price |

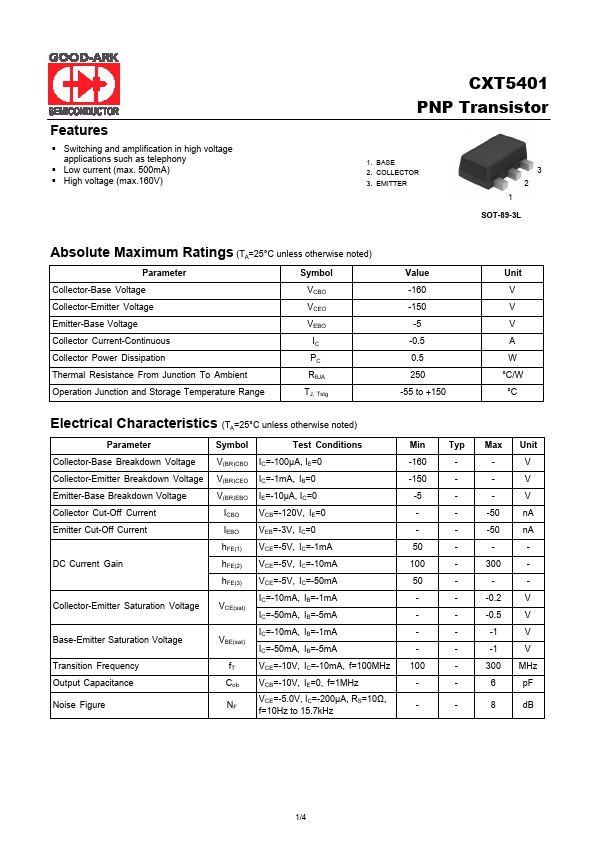

FEATURES
● Switching and amplification in high voltage applications such as telephony● Low current (max. 500mA)
● High voltage (max.160V) CXT5401 PNP Transistor 1. BASE 2. COLLECTOR 3. EMITTER 3 2 1 SOT-89-3L
ABSOLUTE MAXIMUM RATINGS
(TA=25°C unless otherwise noted) Parameter Symbol Collector-Base Voltage VCBO Collector-Emitter Voltage VCEO Emitter-Base Voltage VEBO Collector Current-Continuous IC Collector Power Dissipation PC Thermal Resistance From Junction To Ambient RθJA Operation Junction and Storage Temperature Range TJ, Tstg Value -160 -150 -5 -0.5 0.5 250 -55 to +150 Unit V V V A W °C/W °CELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise noted) Parameter Symbol Test Conditions Collector-Base Breakdown Voltage V(BR)CBO IC=-100μA, IE=0 Collector-Emitter Breakdown Voltage V(BR)CEO IC=-1mA, IB=0 Emitter-Base Breakdown Voltage V(BR)EBO IE=-10μA, IC=0 Collector Cut-Off Current ICBO VCB=-120V, IE=0 Emitter Cut-Off Current IEBO VEB=-3V, IC=0 hFE(1) VCE=-5V, IC=-1mA DC Current Gai...
