DAN222 Datasheet | Yangjie Electronic

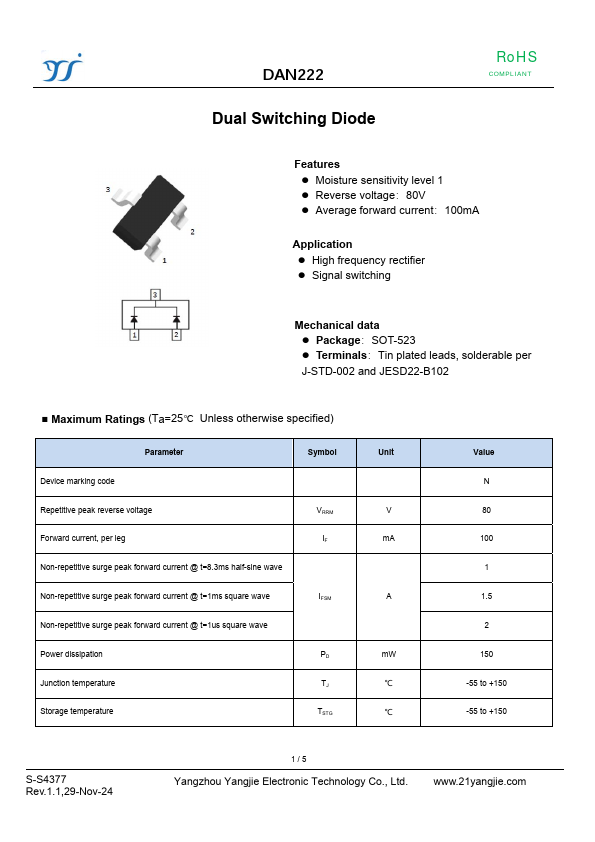

Features - Moisture sensitivity level 1 - Reverse voltage：80V - Average forward current：100m A Application - High frequency rectifier - Signal switching Mechanical data - Package：SOT-523 - Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102 - Maximum Ratings (Ta=25℃ Unless otherwise specified) Parameter Device marking code Repetitive peak reverse voltage Forward current, per leg Non-repetitive surge peak forward current @ t=8.3ms half-sine wave Non-repetitive surge peak forward current @ t=1ms square wave Non-repetitive surge peak forward current @ t=1us square wave Power dissipation Junction temperature Storage temperature Symbol VRRM IF IFSM PD TJ TSTG Unit V m A A m W ℃ ℃ Value N 80 100 1 1.5 2 150 -55 to +150 -55 to +150 S-S4377 Rev.1.1,29-Nov-24 1/5 Yangzhou Yangjie Electronic Technology Co., Ltd. .21yangjie. Ro HS PLIANT - Electrical Characteristics (Ta=25℃ Unless otherwise specified) Parameter Symbol Unit Conditions Min Reverse voltage Forward voltage Reverse leakage current Junction capacitance Reverse recovery time IR=100u A IF=100m...
