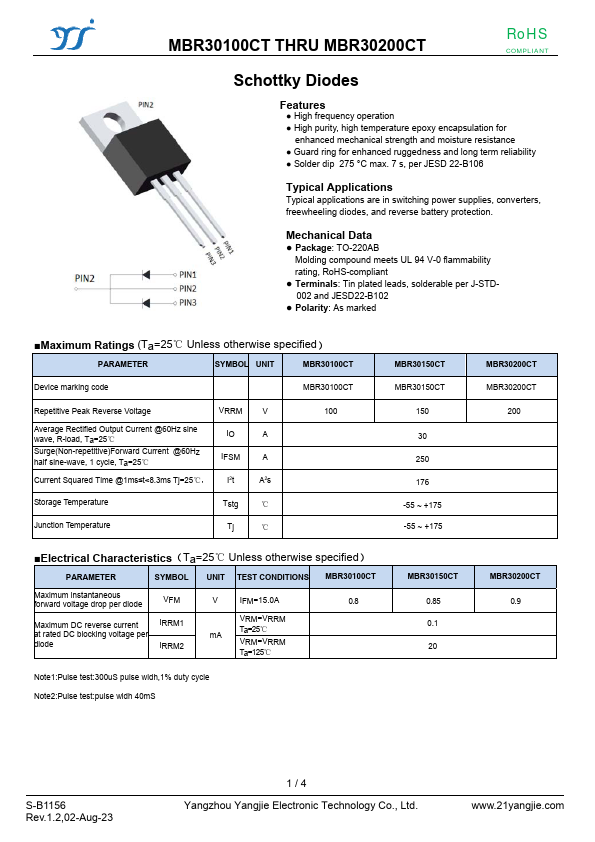

MBR30200CT
MBR30200CT is Schottky Diodes manufactured by Yangjie Electronic.
- Part of the MBR30100CT comparator family.
- Part of the MBR30100CT comparator family.
Features
- High frequency operation
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability
- Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications
Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
Mechanical Data

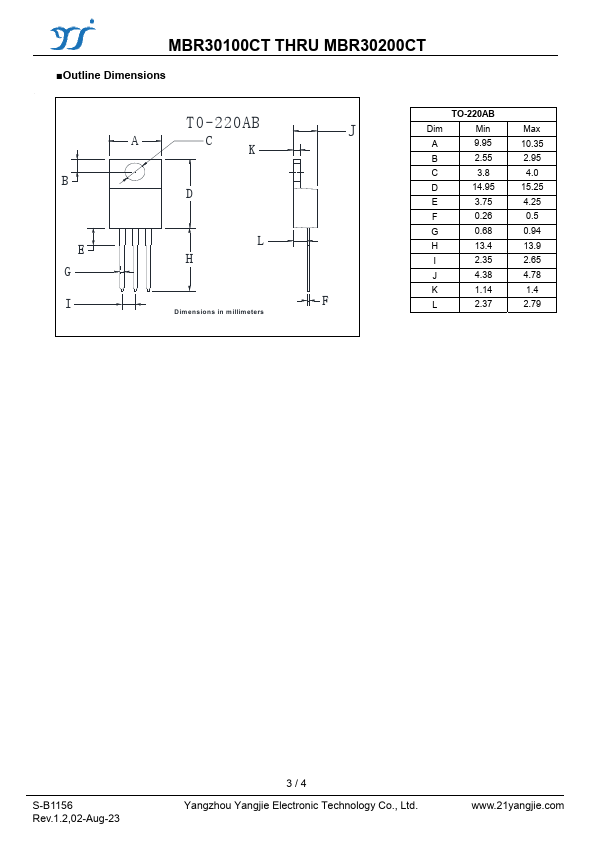

- Package: TO-220AB
Molding pound meets UL 94 V-0 flammability rating, Ro HS-pliant
- Terminals: Tin plated leads, solderable per J-STD-
002 and JESD22-B102
- Polarity: As marked
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL UNIT
MBR30100CT
Device marking code
MBR30100CT
Repetitive Peak Reverse Voltage
VRRM
Average Rectified Output Current @60Hz sine wave, R-load, Ta=25℃
Surge(Non-repetitive)Forward Current @60Hz half sine-wave, 1 cycle, Ta=25℃
IFSM
Current Squared Time @1ms≤t<8.3ms Tj=25℃， I2t
A2s
Storage Temperature
Tstg
℃
Junction Temperature
Tj
℃
MBR30150CT MBR30150CT
150 30 250 176 -55 ~ +175 -55 ~ +175

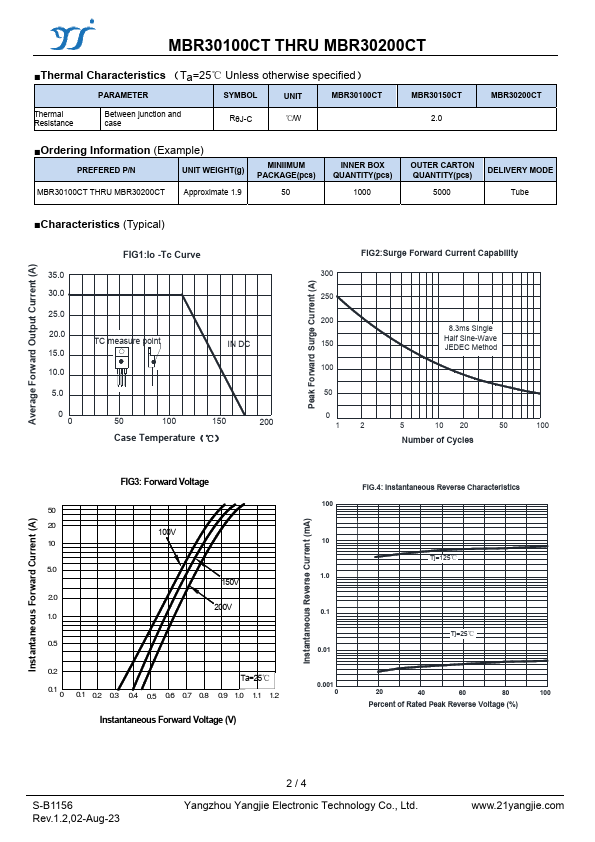

- Electrical Characteristics（Ta=25℃ Unless otherwise specified）
PARAMETER...
