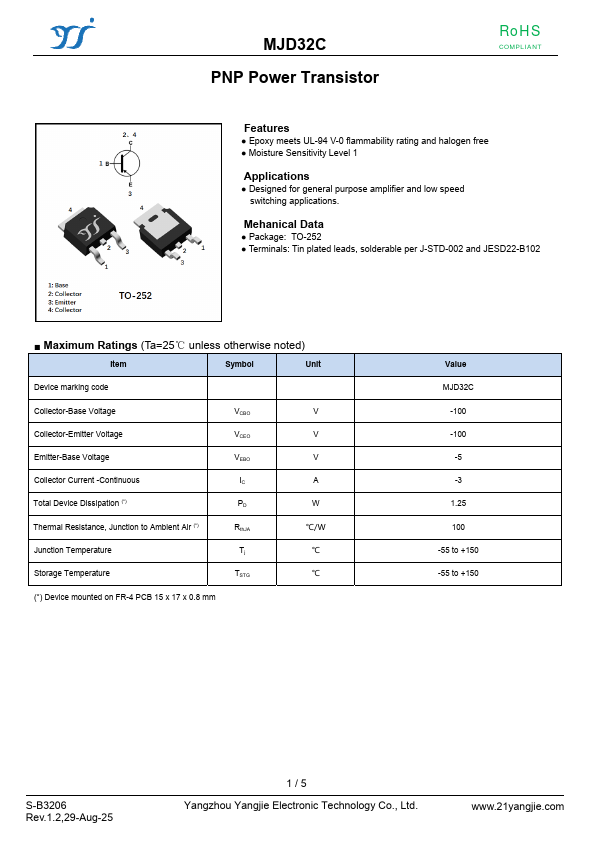

MJD32C
MJD32C is PNP Power Transistor manufactured by Yangjie Electronic.
Features
- Epoxy meets UL-94 V-0 flammability rating and halogen free
- Moisture Sensitivity Level 1
Applications
- Designed for general purpose amplifier and low speed switching applications.
Mehanical Data
- Package: TO-252
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ unless otherwise noted)
Item
Symbol
Unit
Device marking code
Collector-Base Voltage Collector-Emitter Voltage
VCBO
VCEO
Emitter-Base Voltage
VEBO
Collector Current -Continuous Total Device Dissipation (- ) Thermal Resistance, Junction to Ambient Air (- ) Junction Temperature Storage Temperature
IC PD Rth JA Tj TSTG
A W ℃/W ℃ ℃
(- ) Device mounted on FR-4 PCB 15 x 17 x 0.8 mm
Value MJD32C
-100 -100
-5 -3 1.25 100 -55 to +150 -55 to +150
S-B3206 Rev.1.2,29-Aug-25
1/5 Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.

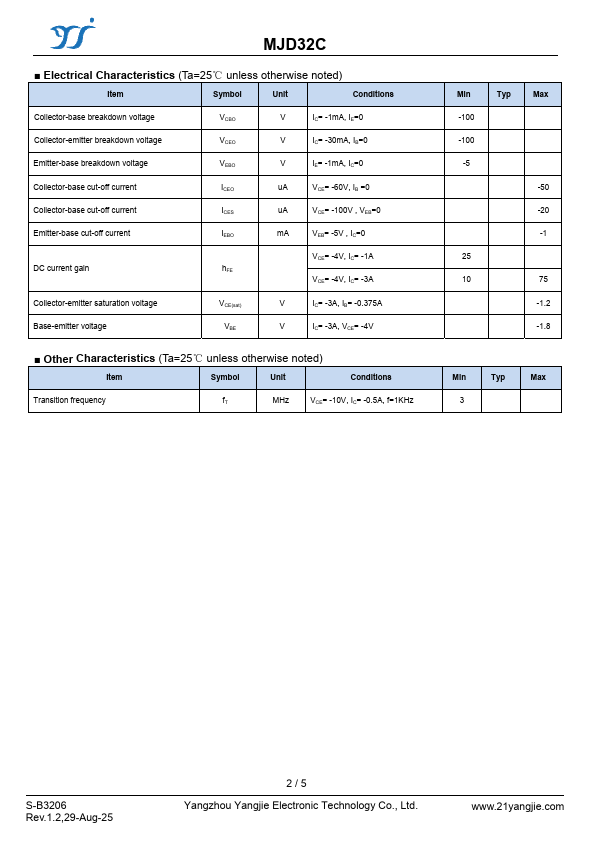

- Electrical Characteristics (Ta=25℃ unless otherwise noted)
Item
Symbol
Unit
Conditions
Collector-base breakdown voltage Collector-emitter breakdown voltage
VCBO VCEO
IC= -1m A,...
