MMBD4448HCDW Description

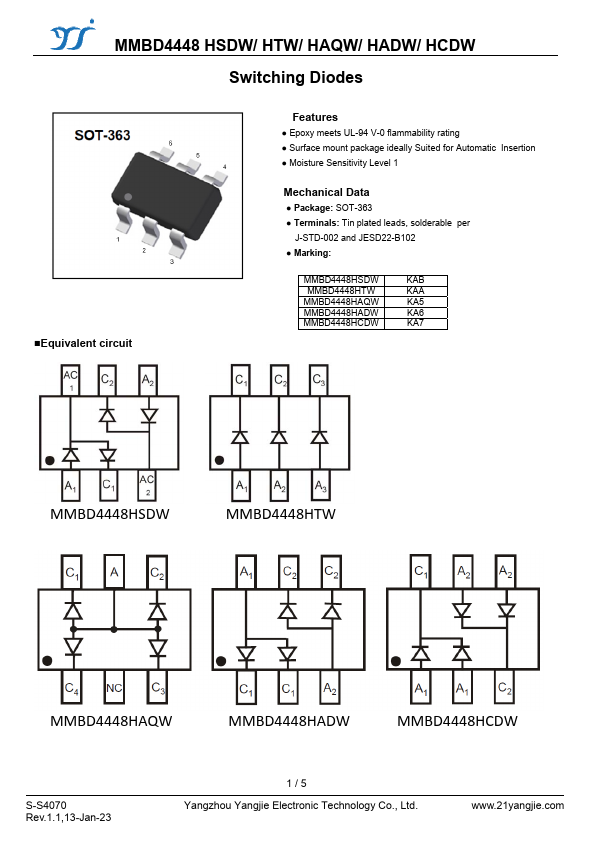

MMBD4448 HSDW/ HTW/ HAQW/ HADW/ HCDW Switching Diodes Equivalent circuit.
MMBD4448HCDW Key Features
- Epoxy meets UL-94 V-0 flammability rating
- Surface mount package ideally Suited for Automatic Insertion
- Moisture Sensitivity Level 1
- Package: SOT-363
- Marking

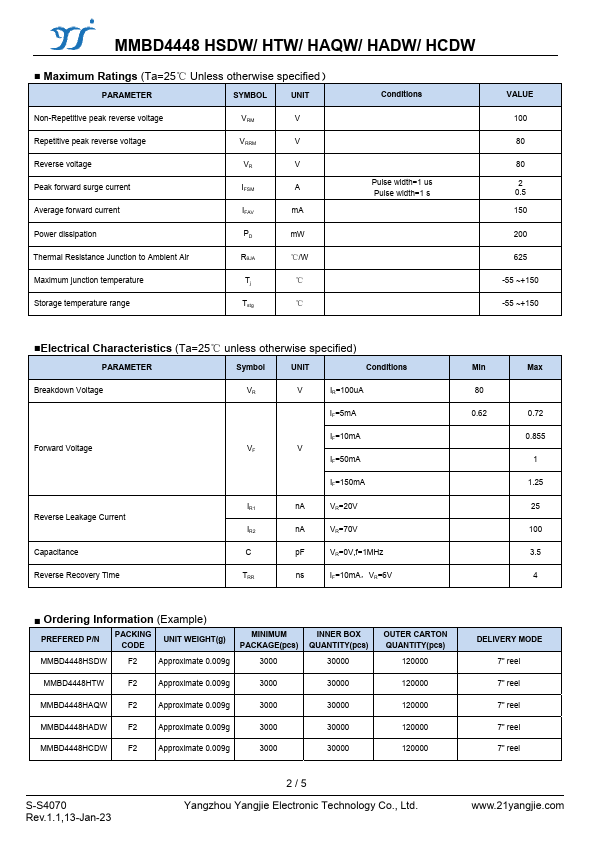

- Maximum Ratings (Ta=25℃ Unless otherwise specified）
- 55 ~+150 -55 ~+150
- Electrical Characteristics (Ta=25℃ unless otherwise specified)
- Ordering Information (Example)

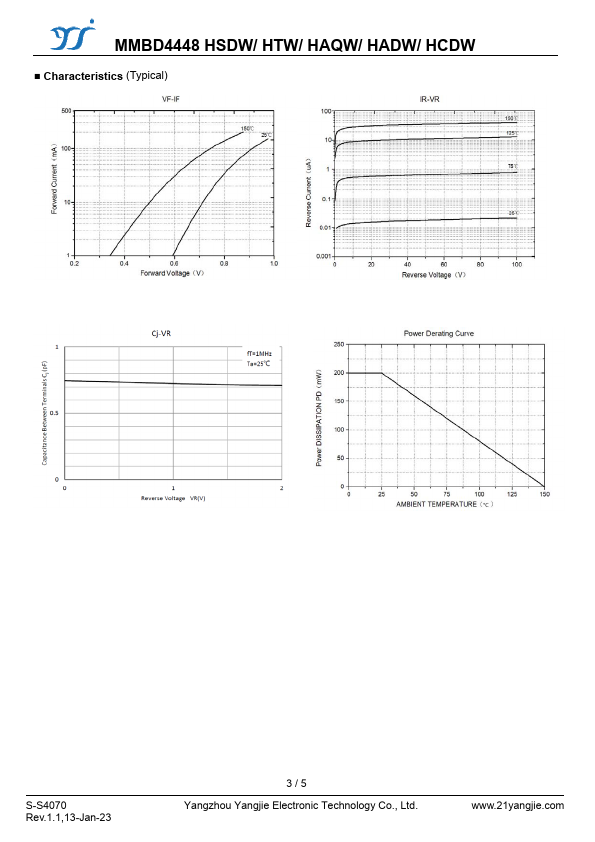

- Characteristics (Typical)
