Datasheet Summary

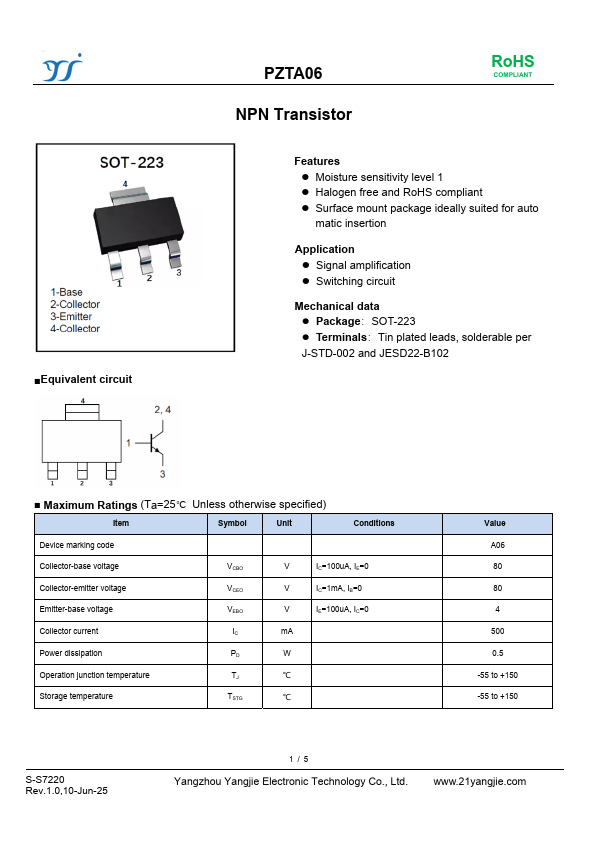

- Equivalent circuit
PZTA06 NPN Transistor
RoHS
PLIANT
Features
- Moisture sensitivity level 1
- Halogen free and RoHS pliant
- Surface mount package ideally suited for auto matic insertion
Application
- Signal amplification
- Switching circuit
Mechanical data
- Package：SOT-223
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Conditions
Device marking code
Collector-base voltage
VCBO
IC=100uA, IE=0
Collector-emitter voltage
VCEO
IC=1mA, IB=0
Emitter-base voltage
VEBO
IE=100uA, IC=0

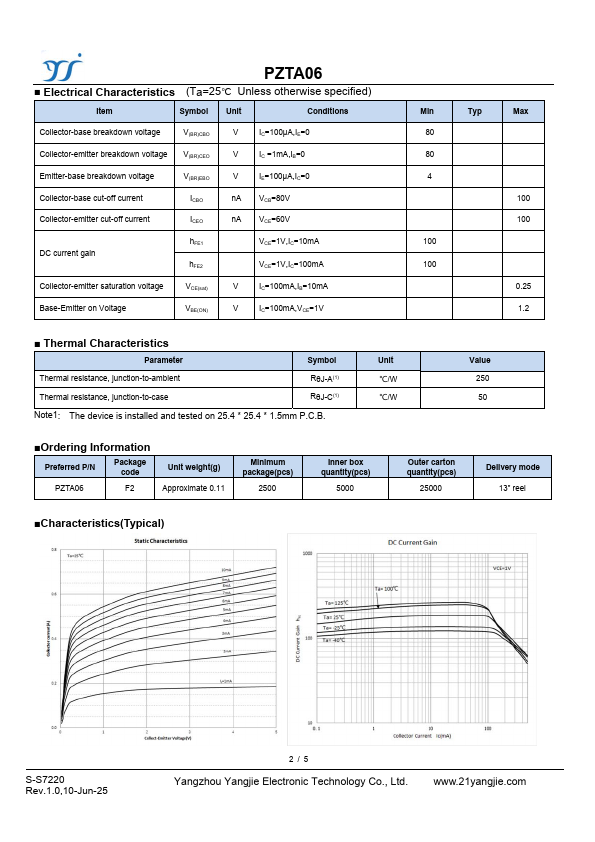

Collector...
