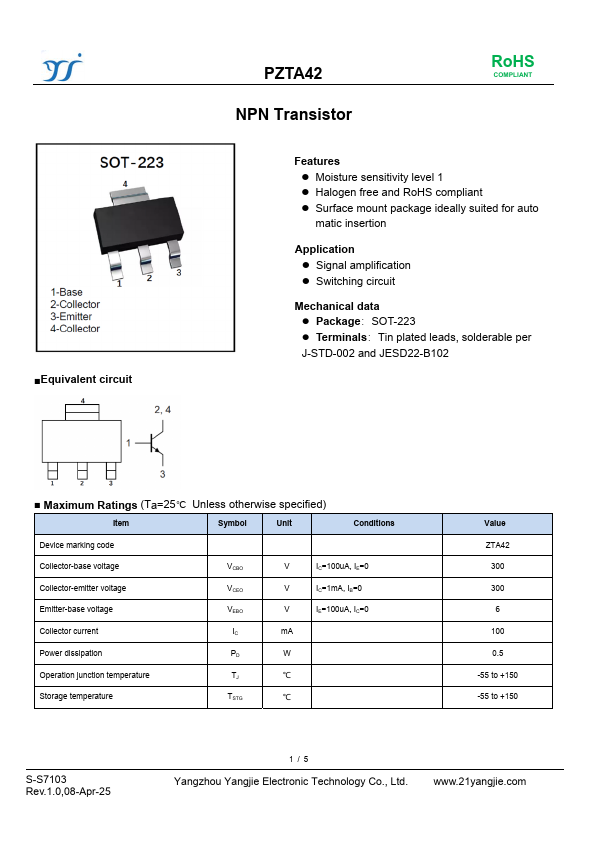

PZTA42 Overview
Equivalent circuit PZTA42 NPN Transistor RoHS PLIANT.
PZTA42 Key Features
- Moisture sensitivity level 1
- Halogen free and RoHS pliant
- Surface mount package ideally suited for auto matic insertion
- Signal amplification
- Switching circuit
- Package：SOT-223
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)

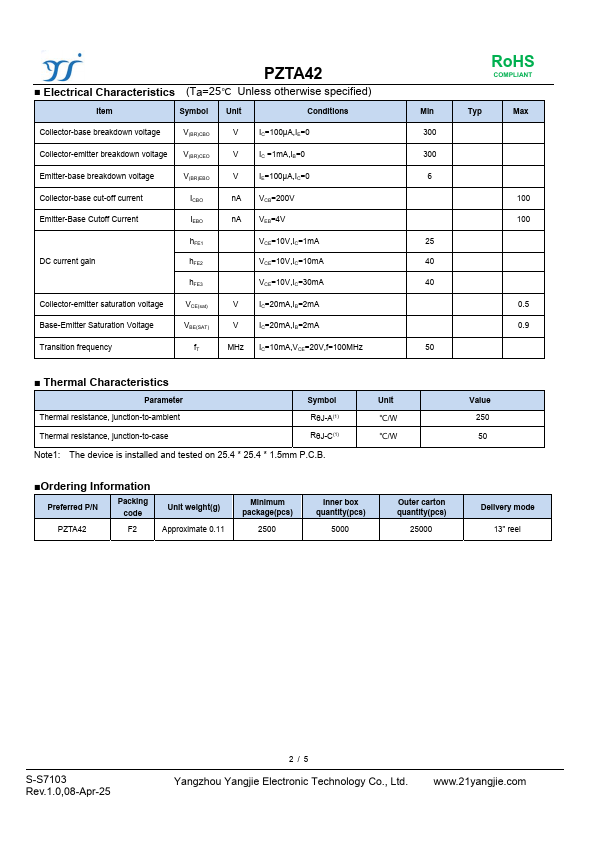

- Electrical Characteristics (Ta=25℃ Unless otherwise specified)
- Thermal Characteristics
