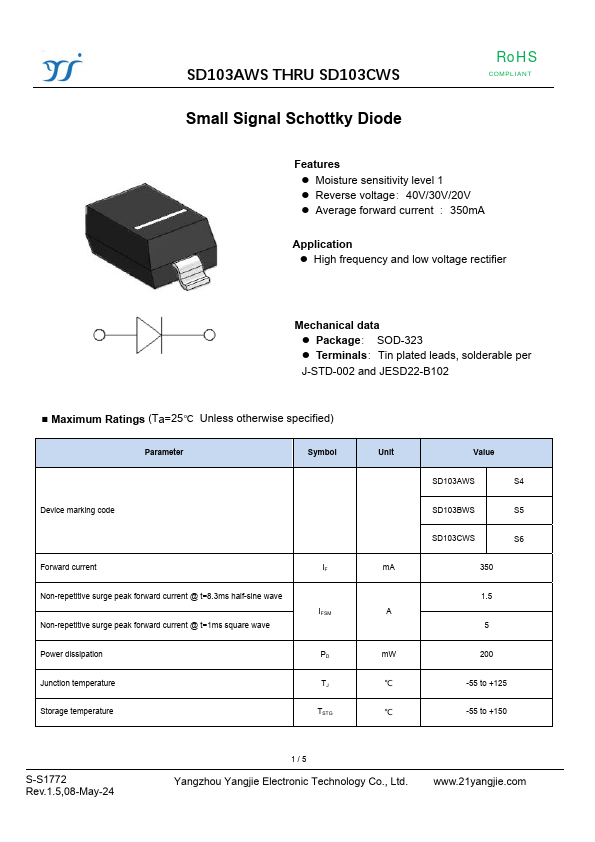

SD103CWS
SD103CWS is Small Signal Schottky Diode manufactured by Yangjie Electronic.
- Part of the SD103AWS comparator family.
- Part of the SD103AWS comparator family.
Features
- Moisture sensitivity level 1
- Reverse voltage：40V/30V/20V
- Average forward current ：350m A
Application
- High frequency and low voltage rectifier
Mechanical data
- Package： SOD-323
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Parameter
Symbol
Device marking code
Forward current
Non-repetitive surge peak forward current @ t=8.3ms half-sine wave IFSM
Non-repetitive surge peak forward current @ t=1ms square wave
Power dissipation
Junction temperature
Storage temperature
TSTG
Unit m A A m W ℃ ℃
Value
SD103AWS
S4
SD103BWS
S5
S6
-55 to +125
-55 to +150
S-S1772 Rev.1.5,08-May-24
1/5
Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie....
