Datasheet4U.com

SD103CWS Datasheet

Manufacturer: PanJit Semiconductor

This datasheet includes multiple variants, all published together in a single manufacturer document.

SD103CWS datasheet preview

Datasheet Details

Part number	SD103CWS
Datasheet	SD103CWS SD103AWS Datasheet (PDF)
File Size	338.46 KB
Manufacturer	PanJit Semiconductor
Description	SURFACE MOUNT SCHOTTKY BARRIER

SD103CWS Overview

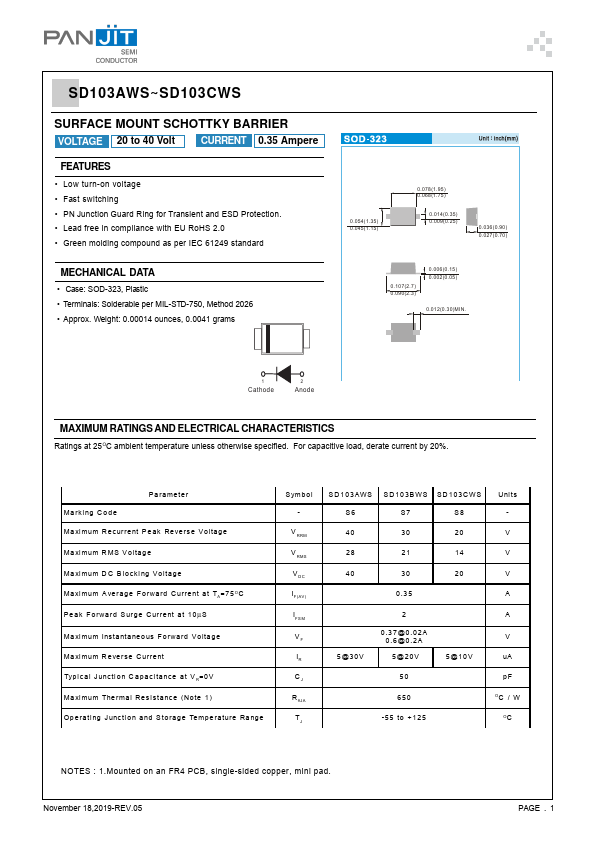

SD103AWS~SD103CWS SURFACE MOUNT SCHOTTKY BARRIER VOLTAGE 20 to 40 Volt CURRENT 0.35 Ampere.

SD103CWS Key Features

Low turn-on voltage
Fast switching
PN Junction Guard Ring for Transient and ESD Protection
Lead free in pliance with EU RoHS 2.0
Green molding pound as per IEC 61249 standard
Case: SOD-323, Plastic
Terminals: Solderable per MIL-STD-750, Method 2026
Approx. Weight: 0.00014 ounces, 0.0041 grams
V RRM V RMS V DC IF ( AV ) IF S M
55 to +125
