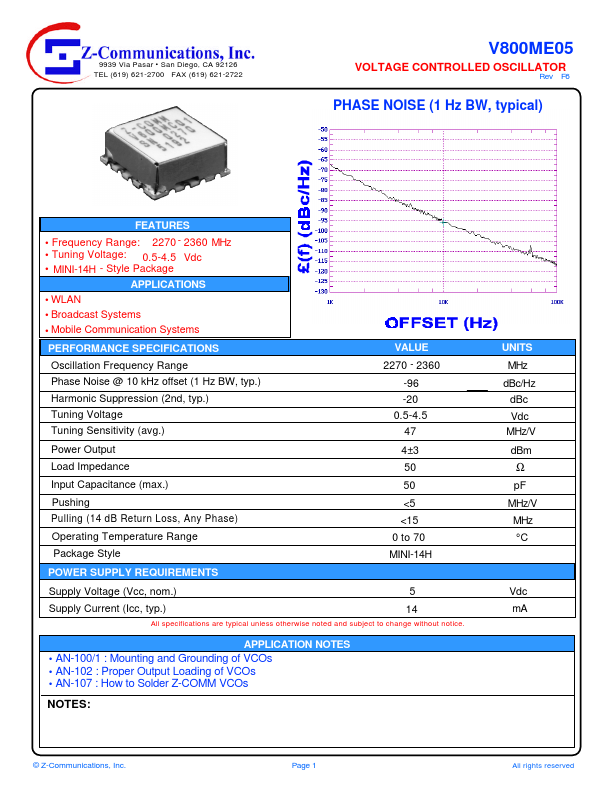

V800ME05
V800ME05 is VOLTAGE CONTROLLED OSCILLATOR manufactured by Z-Communications.
9939 Via Pasar
- San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722
VOLTAGE CONTROLLED OSCILLATOR
Rev F6
PHASE NOISE (1 Hz BW, typical)
Features
- Frequency Range: 2270
- 2360 MHz
- Tuning Voltage: 0.5-4.5 Vdc
- MINI-14H
- Style Package
APPLICATIONS
- WLAN
- Broadcast Systems
- Mobile munication Systems
PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.)
Power Output Load Impedance
Input Capacitance (max.)
Pushing Pulling (14 dB Return Loss, Any Phase) Operating Temperature Range Package Style
POWER SUPPLY REQUIREMENTS
VALUE 2270
- 2360
-96 -20...
