V800ME06
V800ME06 is VOLTAGE CONTROLLED OSCILLATOR manufactured by Z-Communications.
9939 Via Pasar
- San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722

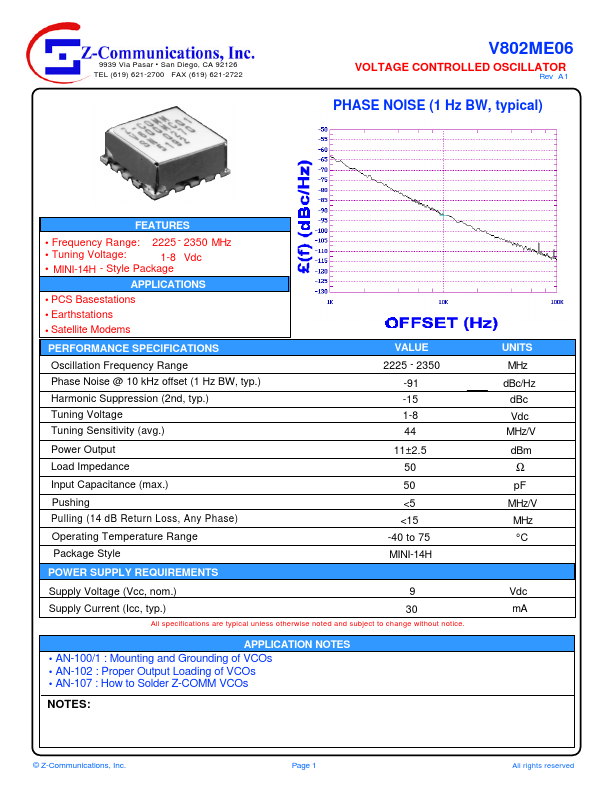

V802ME06
VOLTAGE CONTROLLED OSCILLATOR
Rev A1
PHASE NOISE (1 Hz BW, typical)
Features
- Frequency Range: 2225
- 2350 MHz
- Tuning Voltage:
1-8 Vdc
- MINI-14H
- Style Package
APPLICATIONS
- PCS Basestations
- Earthstations
- Satellite Modems
PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.)
Power Output Load Impedance
Input Capacitance (max.)
Pushing Pulling (14 dB Return Loss, Any Phase)
Operating Temperature Range Package Style
POWER SUPPLY REQUIREMENTS
VALUE 2225
- 2350
-91...
