AZ696 - SUBMINIATURE POWER RELAY

Features

  • High sensitivity, 110 mW pickup Dielectric strength 4000 Vrms Isolation spacing greater than 8 mm Proof tracking index (PTI/CTI) 250 10 Amp switching capability Epoxy sealed version available Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1).
  • UL, CUR file E44211,.
  • VDE file 117422 ÜG.

📥 Download Datasheet

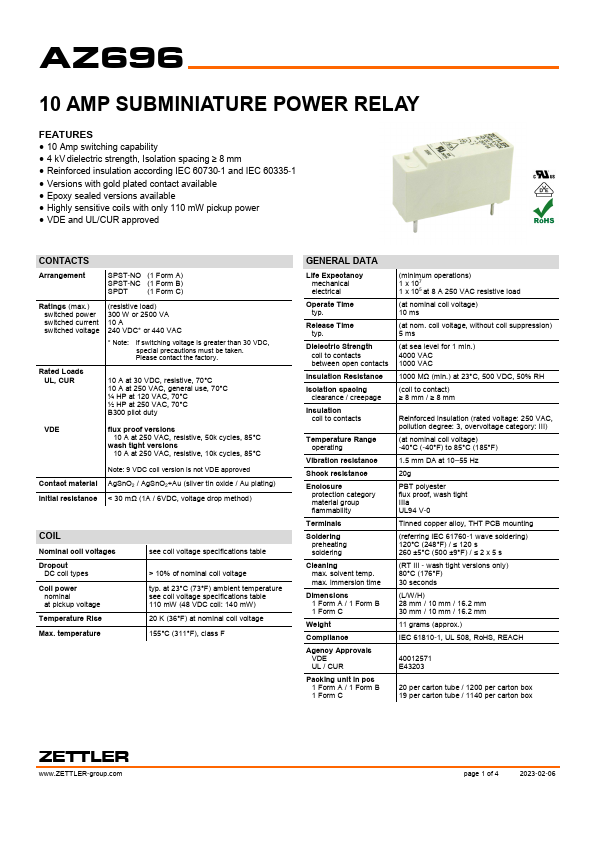

Datasheet preview – AZ696

Datasheet Details

Part number AZ696
Manufacturer ZETTLER Electronics
File Size 88.40 KB
Description SUBMINIATURE POWER RELAY
Datasheet download datasheet AZ696 Datasheet

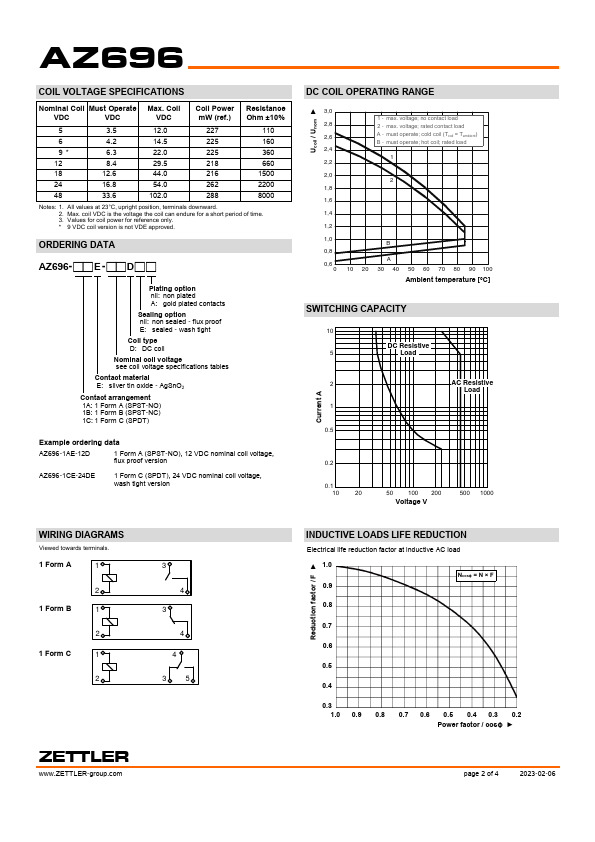

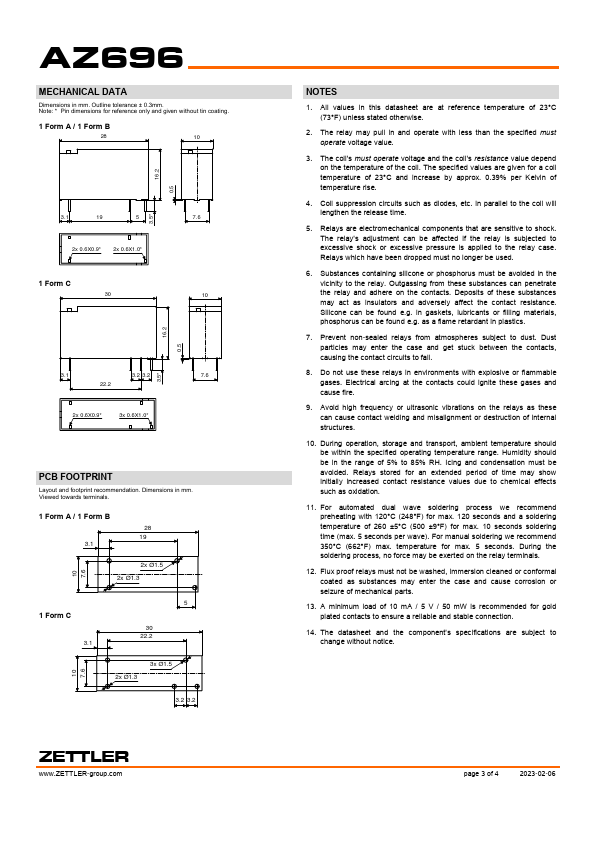

Additional preview pages of the AZ696 datasheet.

📁 Similar Datasheet

  • AZ6963 - 10 AMP SUBMINIATURE POWER RELAY (Zettler)
  • AZ6951 - SENSITIVE SUBMINIATURE RELAY (Zettler)
  • AZ6975 - MINIATURE POWER RELAY (American Zettler)
  • AZ6991 - SENSITIVE SUBMINIATURE RELAY (Zettler)
  • AZ6208B - REVERSIBLE MOTOR DRIVER (BCD Semiconductor)
  • AZ680K - Ceramic Composite Resistors (OHMITE)
  • AZ681K - Ceramic Composite Resistors (OHMITE)
Other Datasheets by ZETTLER Electronics
  • AZ6961 - 10 AMP SUBMINIATURE
  • AZ6962 - SUBMINIATURE POWER RELAY
  • AZ692 - (AZ692 / AZ693) MINIATURE POWER RELAY
  • AZ693 - (AZ692 / AZ693) MINIATURE POWER RELAY
  • AZ695 - SENSITIVE SUBMINIATURE RELAY
  • AZ697 - MINIATURE POWER RELAY
  • AZ699 - SENSITIVE SUBMINIATURE RELAY
  • AZ683 - MINIATURE POWER RELAY

Full PDF Text Transcription

Click to expand full text
AZ696 10 AMP SUBMINIATURE POWER RELAY FEATURES • • • • • • • High sensitivity, 110 mW pickup Dielectric strength 4000 Vrms Isolation spacing greater than 8 mm Proof tracking index (PTI/CTI) 250 10 Amp switching capability Epoxy sealed version available Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1) • UL, CUR file E44211, • VDE file 117422 ÜG CONTACTS Arrangement Ratings SPDT (1 Form C) SPST (1 Form A and 1 Form B) Resistive load: Max. switched power: 240 W or 2500 VA Max. switched current: 10 A Max. switched voltage: 240 VDC* or 440 VAC * Note: If switching voltage is greater than 30 VDC, GENERAL DATA Life Expectancy Mechanical Electrical Operate Time (typical) Release Time (typical) Minimum operations 1 X 107 1 X 105 at 8 A 250 VAC Res.
