AZ6963 - 10 AMP SUBMINIATURE POWER RELAY

Features

  • High sensitivity, 120 mW pickup.
  • Dielectric strength 5000 Vrms.
  • Isolation spacing greater than 10 mm.
  • Proof tracking index (PTI/CTI) 250.
  • 10 Amp switching capability.
  • Epoxy sealed version available.
  • Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1).
  • UL, CUR file E43203.
  • VDE file 40021878.

📥 Download Datasheet

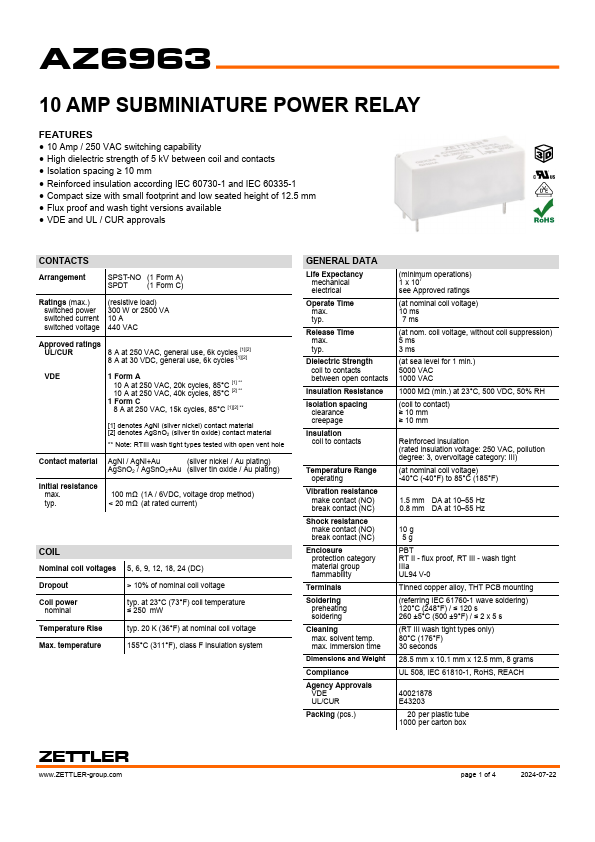

Datasheet preview – AZ6963

Datasheet Details

Part number AZ6963
Manufacturer Zettler
File Size 48.36 KB
Description 10 AMP SUBMINIATURE POWER RELAY
Datasheet download datasheet AZ6963 Datasheet

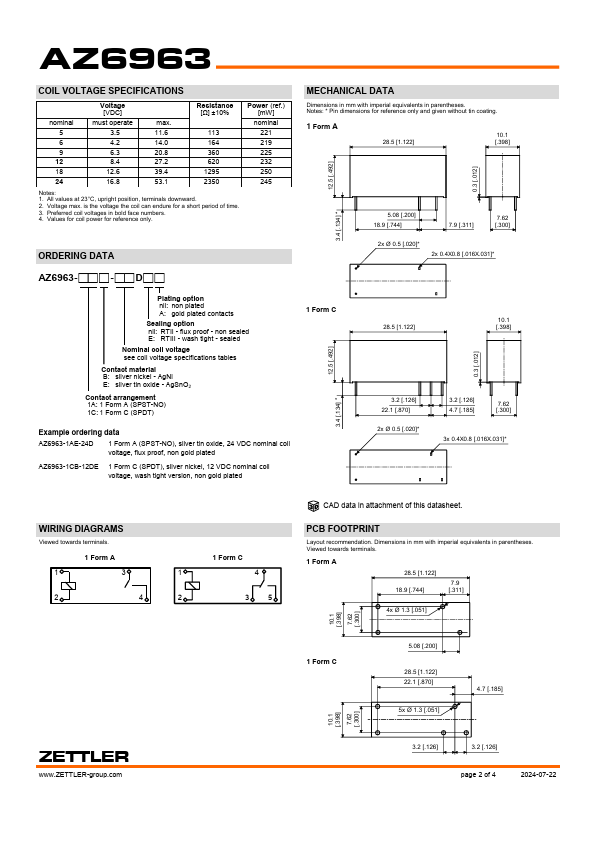

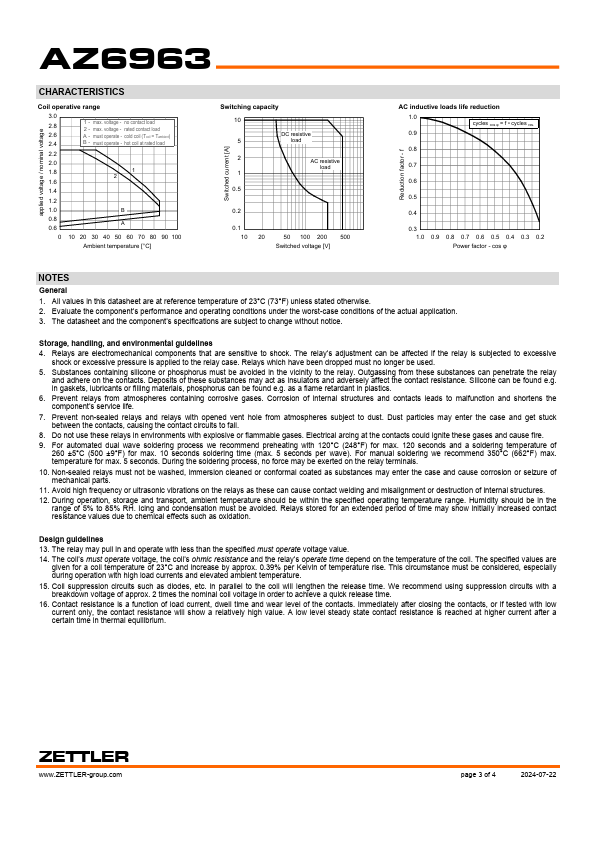

Additional preview pages of the AZ6963 datasheet.

📁 Similar Datasheet

  • AZ696 - SUBMINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ6961 - 10 AMP SUBMINIATURE (ZETTLER Electronics)
  • AZ6962 - SUBMINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ692 - (AZ692 / AZ693) MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ693 - (AZ692 / AZ693) MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ695 - SENSITIVE SUBMINIATURE RELAY (ZETTLER Electronics)
  • AZ697 - MINIATURE POWER RELAY (ZETTLER Electronics)
  • AZ6975 - MINIATURE POWER RELAY (American Zettler)
  • AZ699 - SENSITIVE SUBMINIATURE RELAY (ZETTLER Electronics)
  • AZ6208B - REVERSIBLE MOTOR DRIVER (BCD Semiconductor)
Other Datasheets by Zettler
  • AZ6951 - SENSITIVE SUBMINIATURE RELAY
  • AZ6991 - SENSITIVE SUBMINIATURE RELAY

Full PDF Text Transcription

Click to expand full text
AZ6963 10 AMP SUBMINIATURE POWER RELAY FEATURES • High sensitivity, 120 mW pickup • Dielectric strength 5000 Vrms • Isolation spacing greater than 10 mm • Proof tracking index (PTI/CTI) 250 • 10 Amp switching capability • Epoxy sealed version available • Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1) • UL, CUR file E43203 • VDE file 40021878 CONTACTS Arrangement SPDT (1 Form C), DPDT (2 Form C) SPST (1 Form A) Ratings Resistive load: Max. switched power: 240 W or 2500 VA (2 Form C: 150 W or 1250 VA) Max. switched current: 10 A (2 Form C: 5 A) Max. switched voltage: 240 VDC* or 440 VAC Rated Load UL, CUR * Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
