AZ6962 - SUBMINIATURE POWER RELAY

Features

High sensitivity, 120 mW pickup Dielectric strength 5000 Vrms Isolation spacing greater than 10 mm Proof tracking index (PTI/CTI) 250 10 Amp switching capability Epoxy sealed version available Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1).
UL, CUR file E43203.
VDE file 40010953.

ZETTLER Electronics

Datasheet Details

Part number	AZ6962
Manufacturer	ZETTLER Electronics
File Size	84.31 KB
Description	SUBMINIATURE POWER RELAY
Datasheet	AZ6962 Datasheet
Additional preview pages of the AZ6962 datasheet.

📁 Similar Datasheet

AZ6963 - 10 AMP SUBMINIATURE POWER RELAY (Zettler)
AZ6951 - SENSITIVE SUBMINIATURE RELAY (Zettler)
AZ6975 - MINIATURE POWER RELAY (American Zettler)
AZ6991 - SENSITIVE SUBMINIATURE RELAY (Zettler)
AZ6208B - REVERSIBLE MOTOR DRIVER (BCD Semiconductor)
AZ680K - Ceramic Composite Resistors (OHMITE)
AZ681K - Ceramic Composite Resistors (OHMITE)

Other Datasheets by ZETTLER Electronics

AZ696 - SUBMINIATURE POWER RELAY
AZ6961 - 10 AMP SUBMINIATURE
AZ692 - (AZ692 / AZ693) MINIATURE POWER RELAY
AZ693 - (AZ692 / AZ693) MINIATURE POWER RELAY
AZ695 - SENSITIVE SUBMINIATURE RELAY
AZ697 - MINIATURE POWER RELAY
AZ699 - SENSITIVE SUBMINIATURE RELAY
AZ683 - MINIATURE POWER RELAY

Full PDF Text Transcription

Click to expand full text

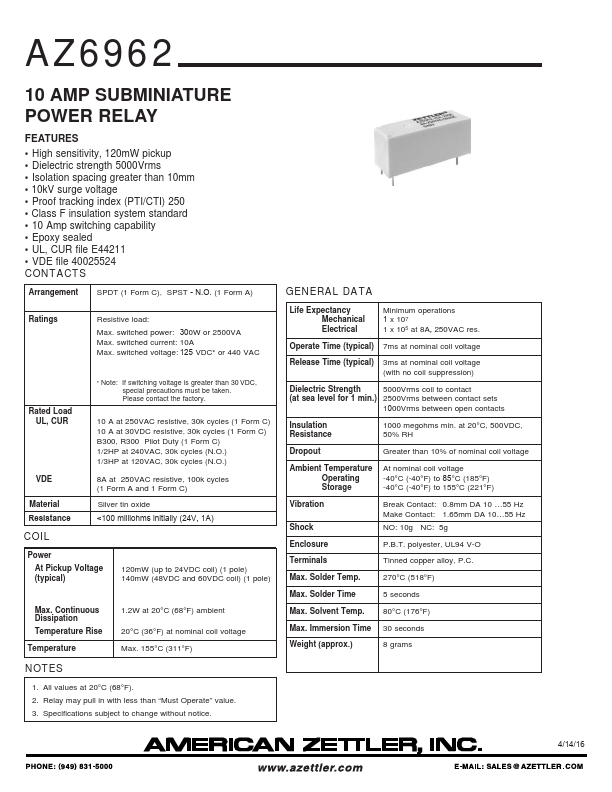

AZ6962 10 AMP SUBMINIATURE POWER RELAY FEATURES • • • • • • • High sensitivity, 120 mW pickup Dielectric strength 5000 Vrms Isolation spacing greater than 10 mm Proof tracking index (PTI/CTI) 250 10 Amp switching capability Epoxy sealed version available Reinforced insulation, EN 60730-1 (VDE 0631, part 1) EN 60335-1 (VDE 0700, part 1) • UL, CUR file E43203 • VDE file 40010953 CONTACTS Arrangement Ratings SPDT (1 Form C), DPDT (2 Form C) SPST (1 Form A and 1 Form B) Resistive load: Max. switched power: 240 W or 2500 VA (2 Form C: 150 W or 1250 VA) Max. switched current: 10 A (2 Form C: 5 A) Max.

Published: May 3, 2007 |
