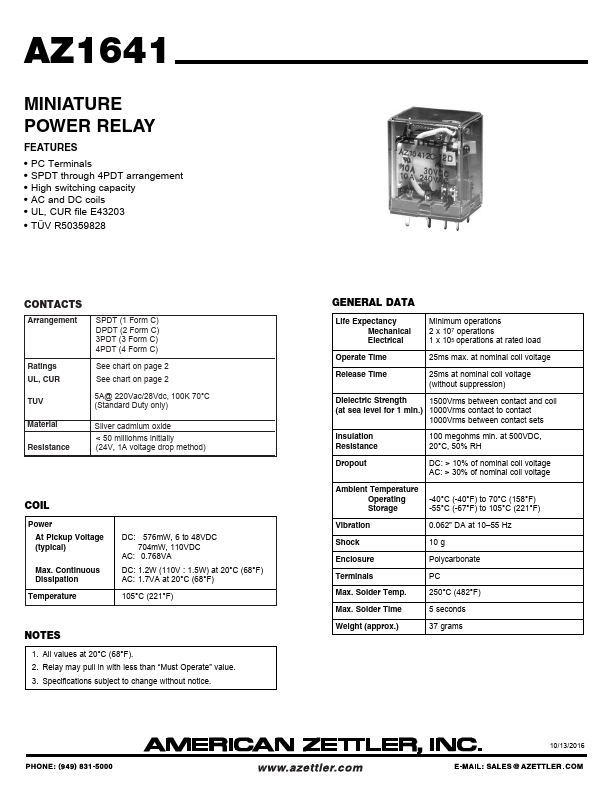

AZ1641
Overview
- PC Terminals
- SPDT through 4PDT arrangement
- High switching capacity
- AC and DC coils
- UL, CUR file E43203

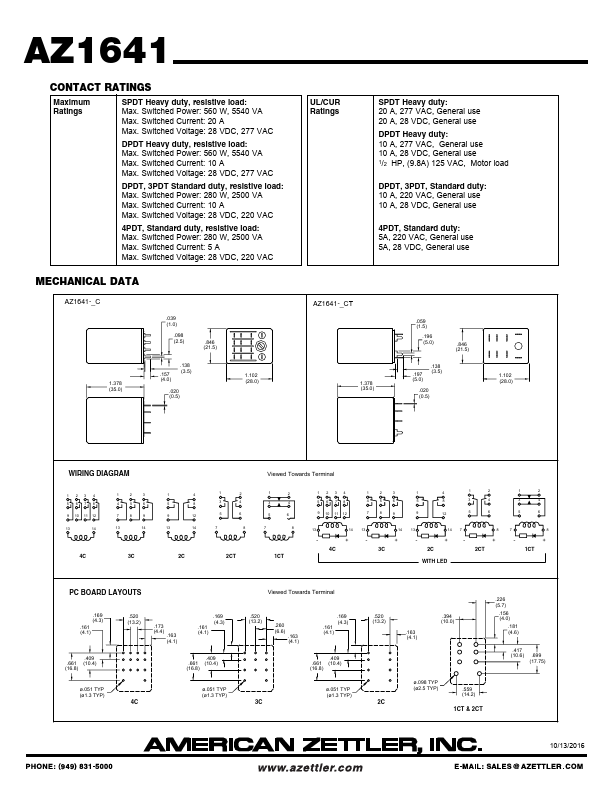

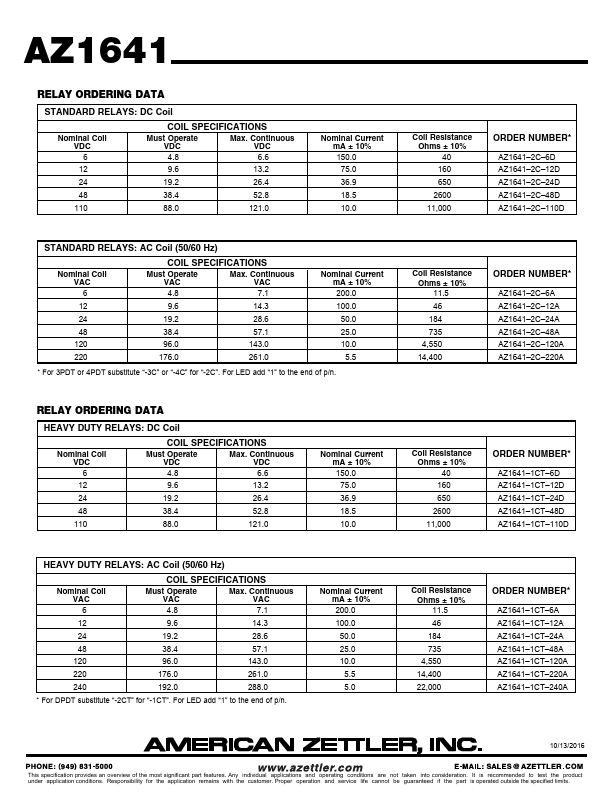

- TÜV R50359828 CONTACTS Arrangement Ratings UL, CUR TUV SPDT (1 Form C) DPDT (2 Form C) 3PDT (3 Form C) 4PDT (4 Form C) See chart on page 2 See chart on page 2 5A@ 220Vac/28Vdc, 100K 70°C (Standard Duty only) Material Resistance Silver cadmium oxide < 50 milliohms initially (24V, 1A voltage drop method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature DC: 576mW, 6 to 48VDC 704mW, 110VDC AC: 0.768VA DC: 1.2W (110V : 1.5W) at 20°C (68°F) AC: 1.7VA at 20°C (68°F) 105°C (221°F) NOTES
- All values at 20°C (68°F).
- Relay may pull in with less than “Must Operate” value.
- Specifications subject to change without notice.
