AZ164 - MINIATURE POWER RELAY

Features

PC Terminals SPDT through 4PDT arrangement High switching capacity AC and DC coils Push To Test lever available on some models CE marking UL, CUR file E43203 TÜV pending.

ZETTLER

Datasheet Details

Part number	AZ164
Manufacturer	ZETTLER
File Size	100.43 KB
Description	MINIATURE POWER RELAY
Datasheet	AZ164 Datasheet
Additional preview pages of the AZ164 datasheet.

📁 Similar Datasheet

AZ165 - MINIATURE POWER RELAY (American Zettler)
AZ1651 - MINIATURE POWER RELAY (American Zettler)
AZ166 - MINIATURE POWER RELAY (American Zettler)
AZ167 - MINIATURE POWER RELAY (American Zettler)
AZ168 - MINIATURE POWER RELAY (American Zettler)
AZ169 - MINIATURE POWER RELAY (American Zettler)
AZ1 - Rectifying Valve (ETC)
AZ1 - Full Wave Rectifying Valve (Philips)
AZ1 - Rectifying Valve (Tungsram)
AZ1 - Valve (RFT)

Other Datasheets by ZETTLER

Full PDF Text Transcription

Click to expand full text

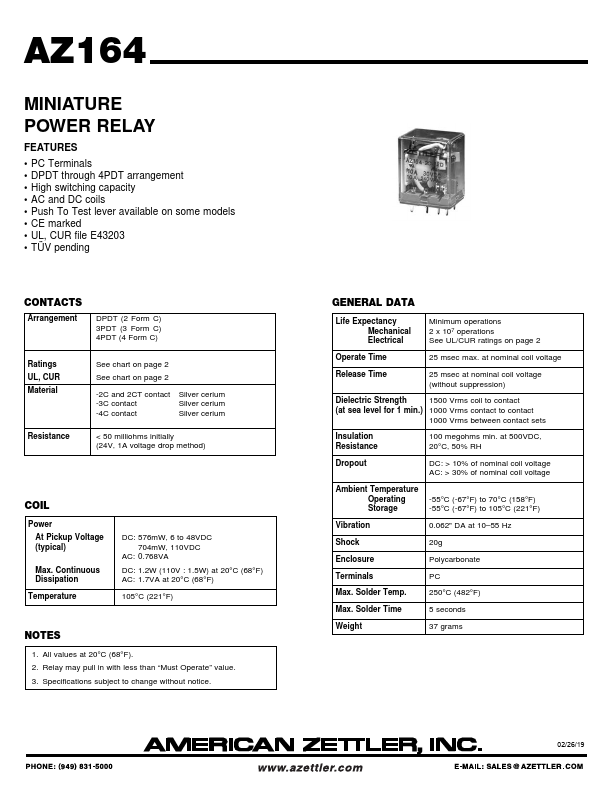

www.DataSheet4U.com AZ164 MINIATURE POWER RELAY FEATURES • • • • • • • • PC Terminals SPDT through 4PDT arrangement High switching capacity AC and DC coils Push To Test lever available on some models CE marking UL, CUR file E43203 TÜV pending CONTACTS Arrangement SPDT (1 Form C) DPDT (2 Form C) 3PDT (3 Form C) 4PDT (4 Form C) See chart on page 2 See chart on page 2 -1CT contact -2C and 2CT contact -3C contact -4C contact Silver Silver Silver Silver cadmium oxide cerium cerium cerium GENERAL DATA Life Expectancy Mechanical Electrical Operate Time Release Time Minimum operations 2 x 107 operations See UL/CUR ratings on page 2 25 msec max.
