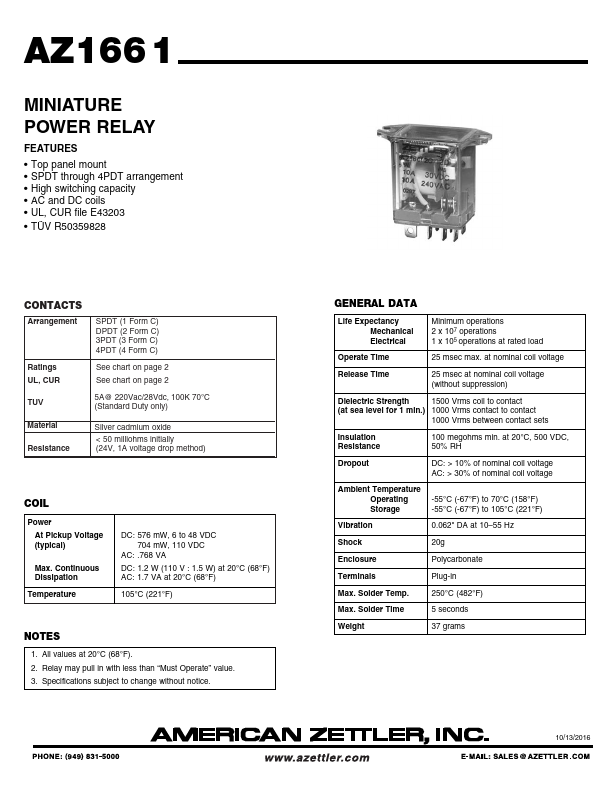

AZ1661
Overview
- Top panel mount
- SPDT through 4PDT arrangement
- High switching capacity
- AC and DC coils
- UL, CUR file E43203

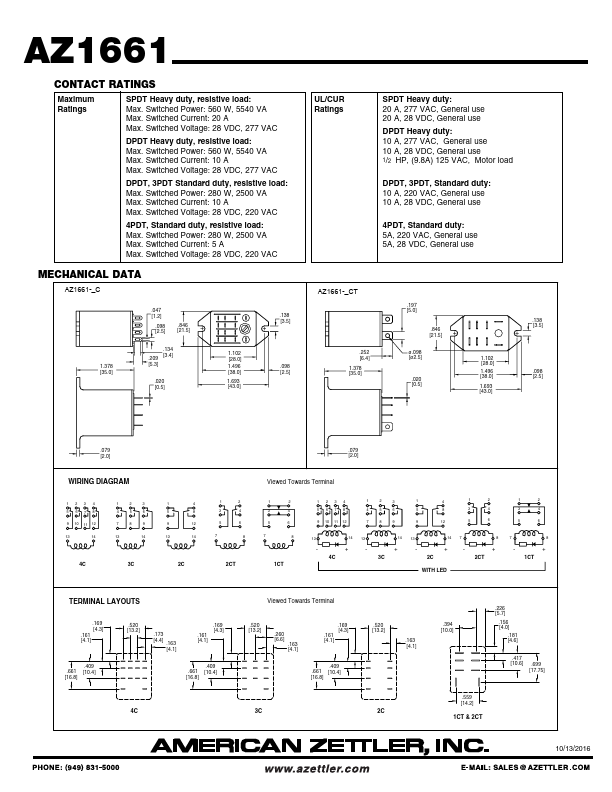

- TÜV R50359828 CONTACTS Arrangement Ratings UL, CUR TUV SPDT (1 Form C) DPDT (2 Form C) 3PDT (3 Form C) 4PDT (4 Form C) See chart on page 2 See chart on page 2 5A@ 220Vac/28Vdc, 100K 70°C (Standard Duty only) Material Resistance Silver cadmium oxide < 50 milliohms initially (24V, 1A voltage drop method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature DC: 576 mW, 6 to 48 VDC 704 mW, 110 VDC AC: .768 VA DC: 1.2 W (110 V : 1.5 W) at 20°C (68°F) AC: 1.7 VA at 20°C (68°F) 105°C (221°F) NOTES
- All values at 20°C (68°F).
- Relay may pull in with less than “Must Operate” value.
- Specifications subject to change without notice.
