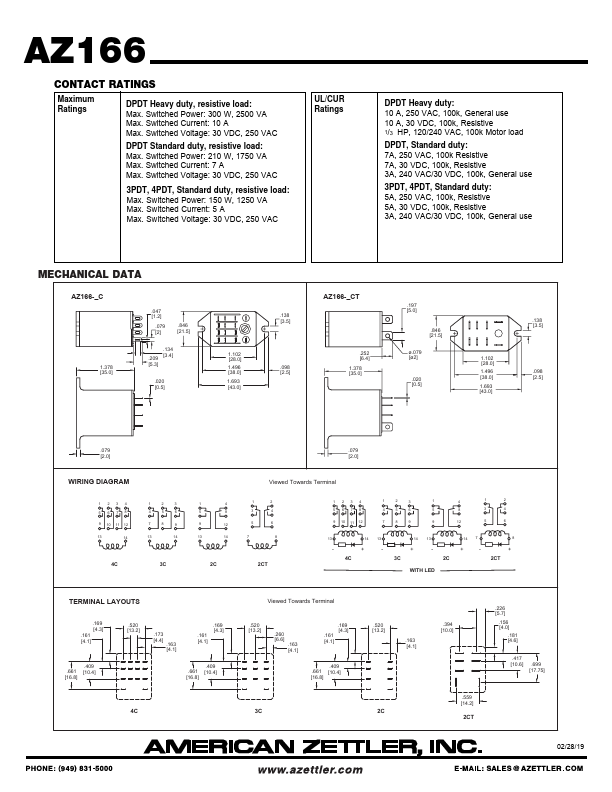

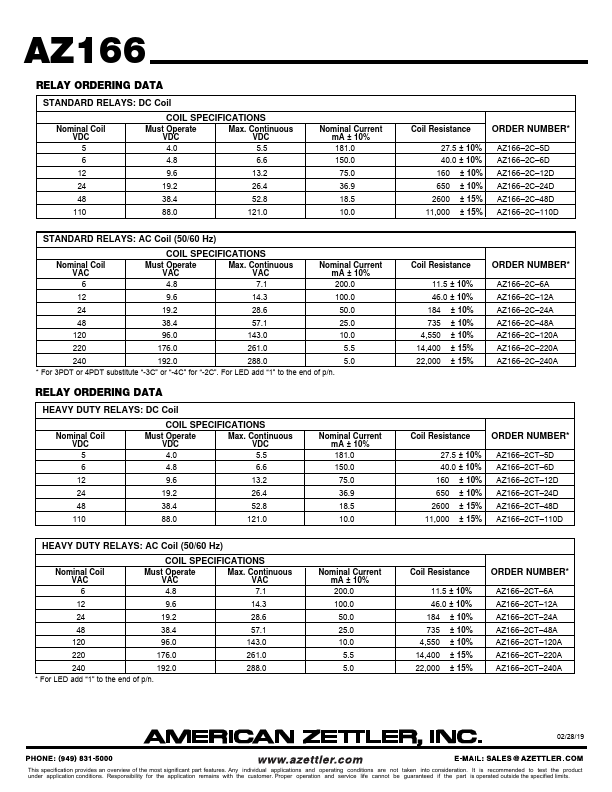

AZ166 - MINIATURE POWER RELAY

Features

  • Top panel mount SPDT through 4PDT arrangement High switching capacity AC and DC coils CE marked UL, CUR file E43203 TÜV pending.

📥 Download Datasheet

Datasheet preview – AZ166

Datasheet Details

Part number AZ166
Manufacturer American Zettler
File Size 143.49 KB
Description MINIATURE POWER RELAY
Datasheet download datasheet AZ166 Datasheet
Additional preview pages of the AZ166 datasheet.

📁 Similar Datasheet

  • AZ164 - MINIATURE POWER RELAY (ZETTLER)
  • AZ1 - Rectifying Valve (ETC)
  • AZ1 - Full Wave Rectifying Valve (Philips)
  • AZ1 - Rectifying Valve (Tungsram)
  • AZ1 - Valve (RFT)
  • AZ1 - Directly Heated Rectifier (Mullard)
  • AZ100E111 - 1:9 Differential Clock Driver (Arizona)
  • AZ100E116 - ECL/PECL Quint Differential Line Receiver (Arizona Microtek)
  • AZ100E131 - ECL/PECL 4-bit D Flip-Flop (Arizona Microtek)
  • AZ100E142 - ECL/PECL 9-bit Shift Register (Arizona Microtek)
Other Datasheets by American Zettler
  • AZ165 - MINIATURE POWER RELAY
  • AZ1651 - MINIATURE POWER RELAY
  • AZ167 - MINIATURE POWER RELAY
  • AZ168 - MINIATURE POWER RELAY
  • AZ169 - MINIATURE POWER RELAY

Full PDF Text Transcription

Click to expand full text
AZ166 www.DataSheet4U.com MINIATURE POWER RELAY FEATURES • • • • • • • Top panel mount SPDT through 4PDT arrangement High switching capacity AC and DC coils CE marked UL, CUR file E43203 TÜV pending CONTACTS Arrangement SPDT (1 Form C) DPDT (2 Form C) 3PDT (3 Form C) 4PDT (4 Form C) See chart on page 2 See chart on page 2 5 VDC, 0.1 A -1CT contact -2C and 2CT contact -3C contact -4C contact Silver Silver Silver Silver cadmium oxide cerium cerium cerium GENERAL DATA Life Expectancy Mechanical Electrical Operate Time Release Time Minimum operations 2 x 107 operations See UL/CUR ratings on page 2 25 msec max.
