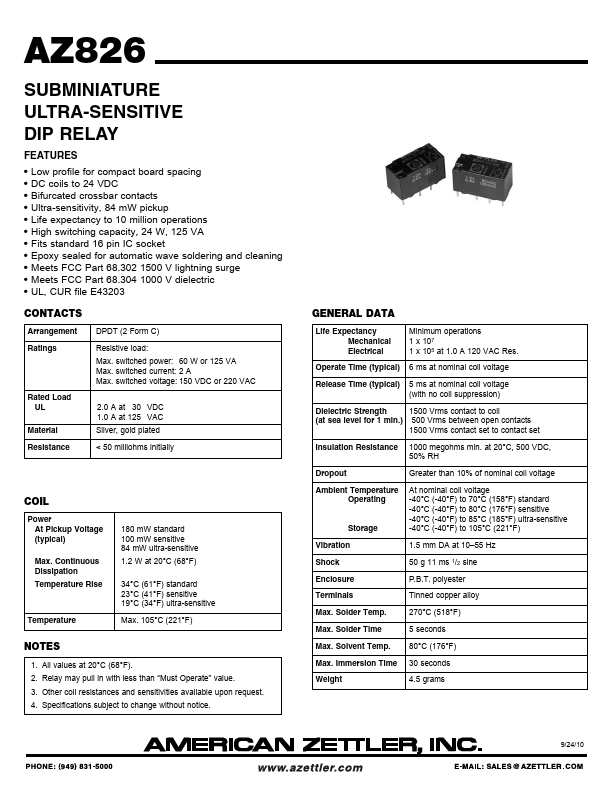

Datasheet Summary
SUBMINIATURE ULTRA-SENSITIVE DIP RELAY
Features
- Low profile for pact board spacing
- DC coils to 24 VDC
- Bifurcated crossbar contacts
- Ultra-sensitivity, 84 mW pickup
- Life expectancy to 10 million operations
- High switching capacity, 24 W, 125 VA
- Fits standard 16 pin IC socket
- Epoxy sealed for automatic wave soldering and cleaning
- Meets FCC Part 68.302 1500 V lightning surge
- Meets FCC Part 68.304 1000 V dielectric
- UL, CUR file E43203
CONTACTS
Arrangement Ratings
Rated Load UL
Material Resistance
DPDT (2 Form C)
Resistive load: Max. switched power: 60 W or 125 VA Max. switched current: 2 A Max. switched voltage: 150 VDC or 220 VAC
2.0 A at 30 VDC 1.0 A at 125...
