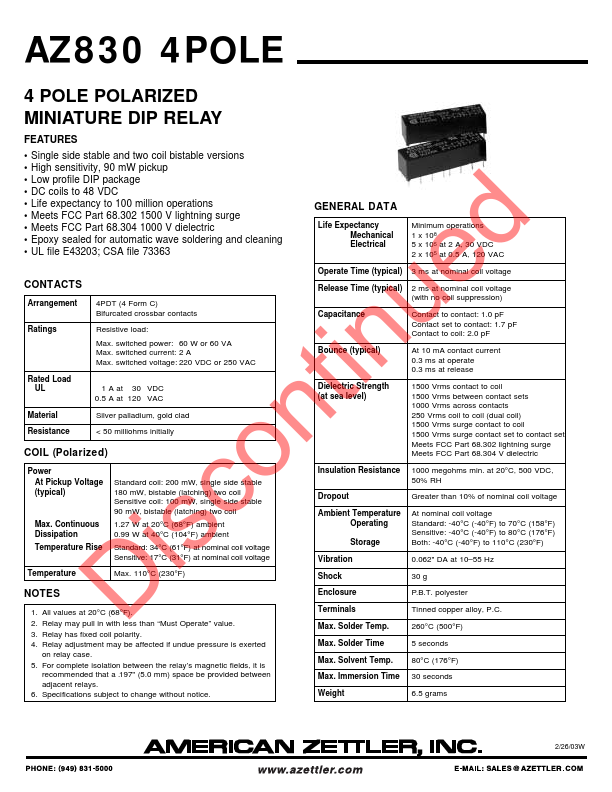

AZ830-4POLE
Overview
- Single side stable and two coil bistable versions
- High sensitivity, 90 mW pickup
- Low profile DIP package
- DC coils to 48 VDC
- Life expectancy to 100 million operations
- Meets FCC Part 68.302 1500 V lightning surge
- Meets FCC Part 68.304 1000 V dielectric
- Epoxy sealed for automatic wave soldering and cleaning d
- UL file E43203; CSA file 73363 CONTACTS e Arrangement 4PDT (4 Form C) Bifurcated crossbar contacts u Ratings Resistive load: Max. switched power: 60 W or 60 VA Max. switched current: 2 A Max. switched voltage: 220 VDC or 250 VAC tin Rated Load UL 1 A at 30 VDC 0.5 A at 120 VAC Material Silver palladium, gold clad Resistance < 50 milliohms initially
- COIL (Polarized) Power o At Pickup Voltage (typical) c Max. Continuous Dissipation is Temperature Rise Standard coil: 200 mW, single side stable 180 mW, bistable (latching) two coil Sensitive coil: 100 mW, single side stable 90 mW, bistable (latching) two coil
