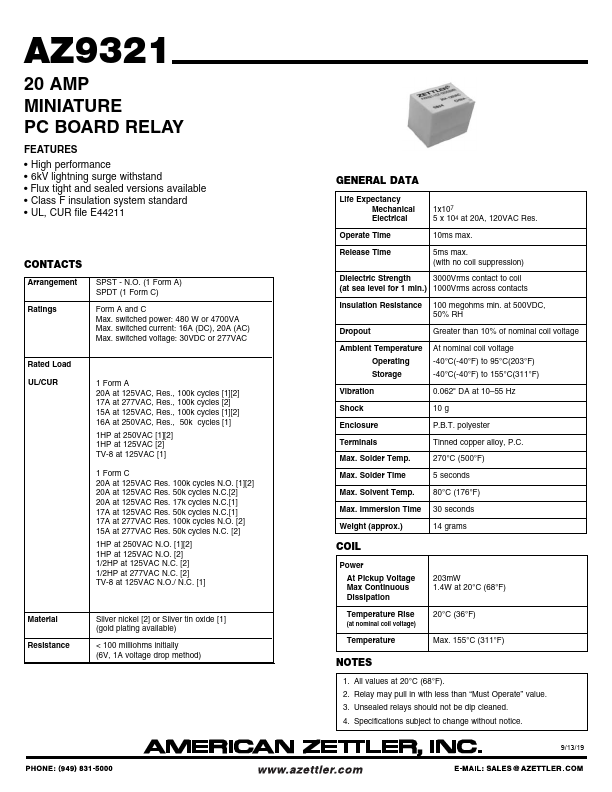

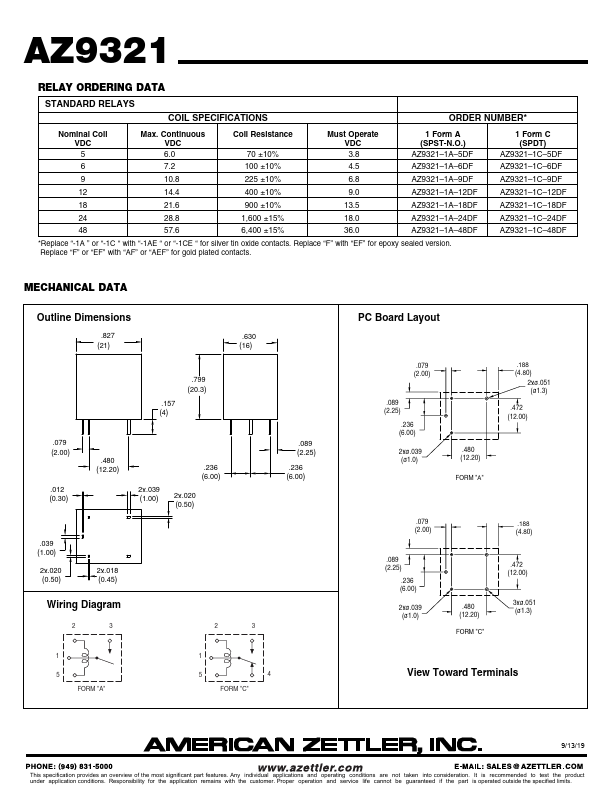

AZ9321
Overview
- High performance
- 6kV lightning surge withstand
- Flux tight and sealed versions available
- Class F insulation system standard
- UL, CUR file E44211 CONTACTS Arrangement Ratings SPST - N.O. (1 Form A) SPDT (1 Form C) Form A and C Max. switched power: 480 W or 4700VA Max. switched current: 16A (DC), 20A (AC) Max. switched voltage: 30VDC or 277VAC Rated Load UL/CUR 1 Form A 20A at 125VAC, Res., 100k cycles [1][2] 17A at 277VAC, Res., 100k cycles [2] 15A at 125VAC, Res., 100k cycles [1][2] 16A at 250VAC, Res., 50k cycles [1] 1HP at 250VAC [1][2] 1HP at 125VAC [2] TV-8 at 125VAC [1] 1 Form C 20A at 125VAC Res. 100k cycles N.O. [1][2] 20A at 125VAC Res. 50k cycles N.C.[2] 20A at 125VAC Res. 17k cycles N.C.[1] 17A at 125VAC Res. 50k cycles N.C.[1] 17A at 277VAC Res. 100k cycles N.O. [2] 15A at 277VAC Res. 50k cycles N.C. [2] 1HP at 250VAC N.O. [1][2] 1HP at 125VAC N.O. [2] 1/2HP at 125VAC N.C. [2] 1/2HP at 277VAC N.C. [2] TV-8 at 125VAC N.O./ N.C. [1] Material Resistance Silver nickel [2] or Silver tin oxide [1] (gold plating available) < 100 milliohms initially (6V, 1A voltage drop method)
