FZT4403

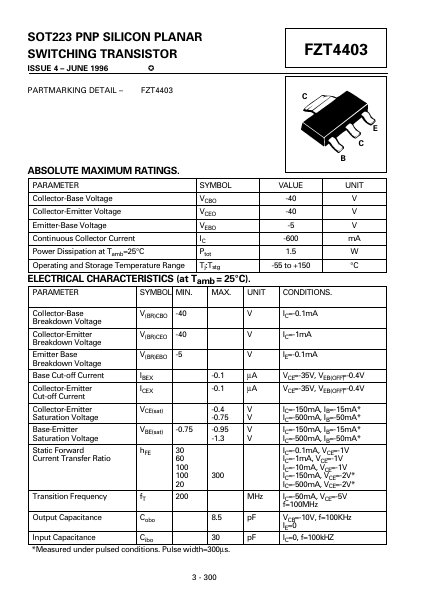

FZT4403 is SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR manufactured by Zetex Semiconductors.
SOT223 PNP SILICON PLANAR
SWITCHING TRANSISTOR
ISSUE 4 JUNE 1996
PARTMARKING DETAIL FZT4403
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VALUE
Collector-Base Voltage
VCBO
-40
Collector-Emitter Voltage
VCEO
-40
Emitter-Base Voltage
VEBO
-5
Continuous Collector Current
-600
Power Dissipation at Tamb=25°C
Ptot
Operating and Storage Temperature Range Tj:Tstg
-55 to +150
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C).
PARAMETER
SYMBOL MIN. MAX. UNIT CONDITIONS.
UNIT V V V m A W °C
Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter Base Breakdown Voltage Base Cut-off Current Collector-Emitter Cut-off Current Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage Static Forward Current Transfer Ratio
Transition Frequency
V(BR)CBO -40
V(BR)CEO -40
V(BR)EBO -5
IBEX ICEX
VCE(sat)
VBE(sat) -0.75 h...
