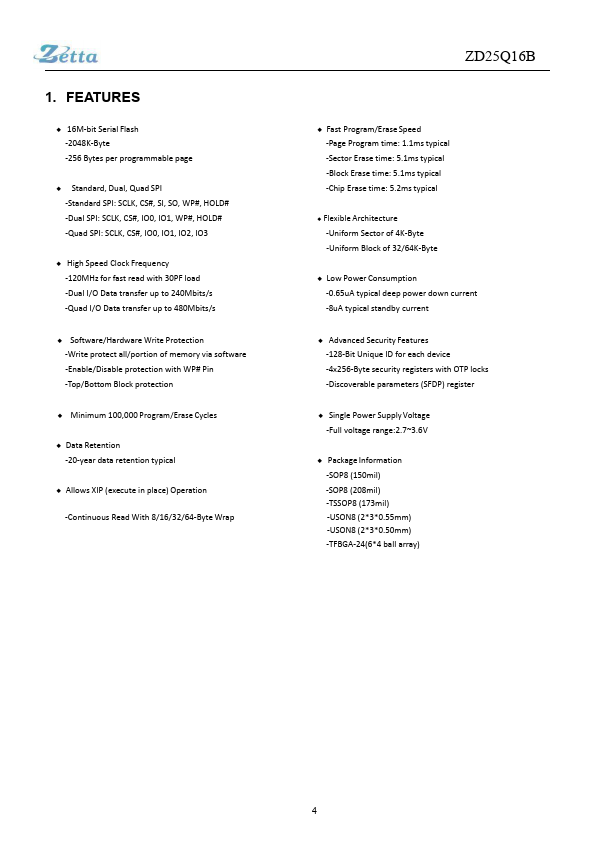

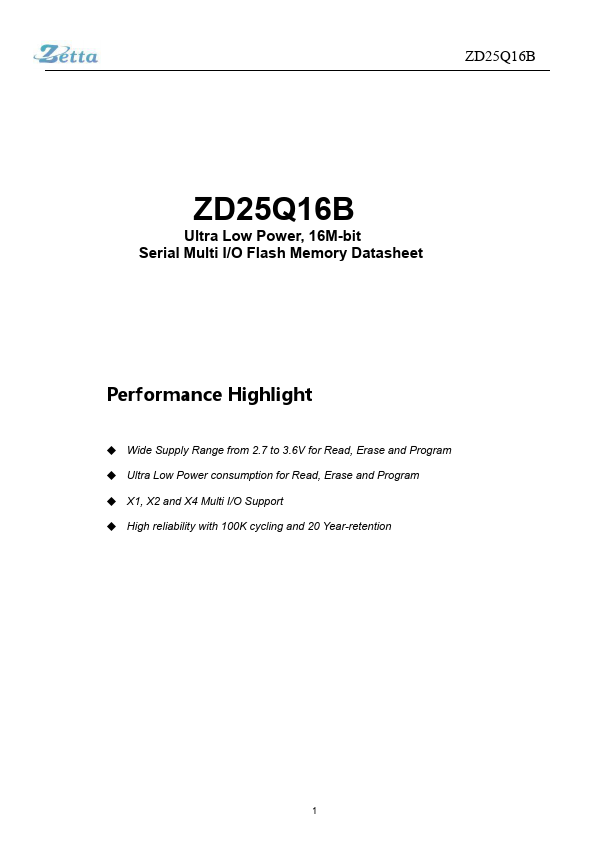

Ultra Low Power, 16M-bit Serial Multi I/O Flash Memory Datasheet Performance Highlight - Wide Supply Range from 2.7 to 3.6V for Read, Erase and Program - Ultra Low Power consumption for Read, Erase and Program - X1, X2 and X4 Multi I/O Support - High reliability with 100K cycling and 20 Year-retention 1. Features - 16M-bit Serial Flash -2048K-Byte -256 Bytes per programmable page - Standard, Dual, Quad SPI -Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# -Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# -Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - High Speed Clock Frequency -120MHz for fast read with 30PF load -Dual I/O Data transfer up to 240Mbits/s -Quad I/O Data transfer up to 480Mbits/s - Software/Hardware Write Protection -Write protect all/portion of memory via software -Enable/Disable protection with WP# Pin -Top/Bottom Block protection - Minimum 100,000 Program/Erase Cycles - Data Retention -20-year data retention typical - Allows XIP (execute in place) Operation -Continuous Read With 8/16/32/64-Byte Wrap - Fast Program/Erase Speed -Page Program time: 1.1ms typical -Sector Erase time: 5.1ms typical -Block Erase time: 5.1ms typical -Chip Erase time: 5.2ms typical - Flexible Architecture -Uniform Sector of 4K-Byte -Uniform Block of 32/64K-Byte - Low Power Consumption -0.65u A typical deep power down current -8u A typical standby current - Advanced Security Features -128-Bit Unique ID for each device -4x256-Byte security registers with OTP locks -Discoverable parameters (SFDP) register - Single Power Supply Voltage -Full voltage range:2.7~3.6V - Package Information -SOP8 (150mil) -SOP8 (208mil) -TSSOP8 (173mil) -USON8 (2- 3- 0.55mm) -USON8 (2- 3- 0.50mm) -TFBGA-24(6- 4 ball array) 2. GENERAL DESCRIPTION The ZD25Q16B(16M-bit) Serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI: Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#). The Dual I/O data...
