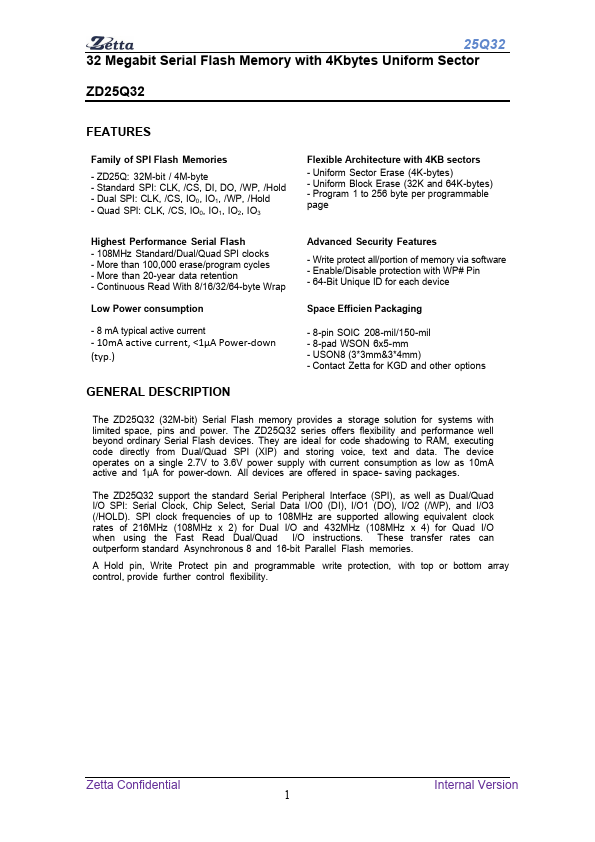

ZD25Q32 Overview
Description
Advanced Security Features - Write protect all/portion of memory via software - Enable/Disable protection with WP# Pin - 64-Bit Unique ID for each device Space Efficien Packaging - 8-pin SOIC 208-mil/150-mil - 8-pad WSON 6x5-mm - USON8 (3*3mm&3*4mm) - Contact Zetta for KGD and other options The ZD25Q32 (32M-bit) Serial Flash memory provides a storage solution for systems with limited space, pins and power. The ZD25Q32 series offers flexibility and performance well beyond ordinary Serial Flash devices.
Key Features
- ZD25Q: 32M-bit / 4M-byte
- Standard SPI: CLK, /CS, DI, DO, /WP, /Hold
- Dual SPI: CLK, /CS, IO0, IO1, /WP, /Hold
- Quad SPI: CLK, /CS, IO0, IO1, IO2, IO3 Flexible Architecture with 4KB sectors
- Uniform Sector Erase (4K-bytes)
