ZD25Q32C Datasheet | Zetta

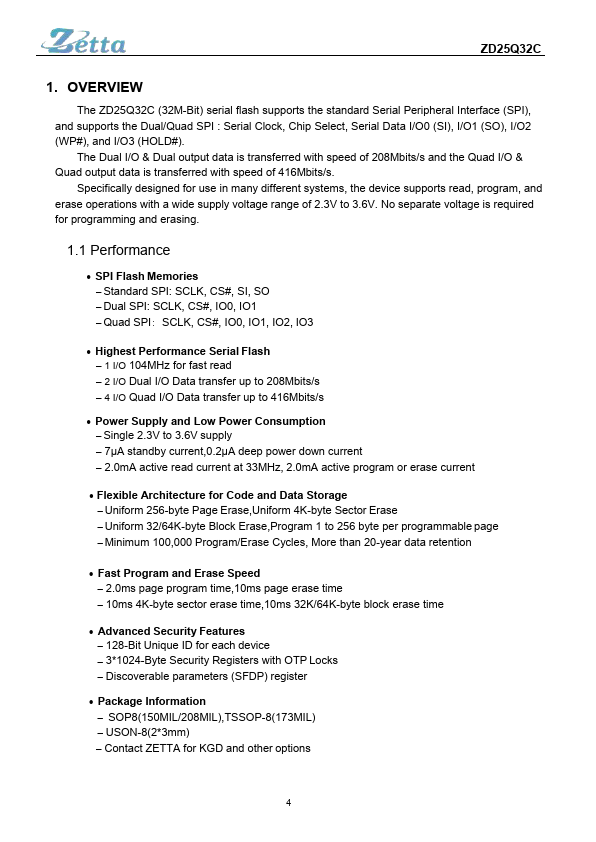

Ultra Low Power, 32M-bit Serial Multi I/O Flash Memory Datasheet Performance Highlight - Wide supply range from 2.3V to 3.6V for Read, Erase and Program - Ultra-Low Power consumption for Read, Erase and Program - x1, x2 and x4 Multi I/O Support - High reliability with 100K cycling endurance and 20-year data retention - Page/Sector/Block Erase - Fast Chip Erase time 10ms 1. OVERVIEW The ZD25Q32C (32M-Bit) serial flash supports the standard Serial Peripheral Interface (SPI), and supports the Dual/Quad SPI : Serial Clock, Chip Select, Serial Data I/O0 (SI), I/O1 (SO), I/O2 (WP#), and I/O3 (HOLD#). The Dual I/O & Dual output data is transferred with speed of 208Mbits/s and the Quad I/O & Quad output data is transferred with speed of 416Mbits/s. Specifically designed for use in many different systems, the device supports read, program, and erase operations with a wide supply voltage range of 2.3V to 3.6V. No separate voltage is required for programming and erasing. 1.1 Performance - SPI Flash Memories - Standard SPI: SCLK, CS#, SI, SO - Dual SPI: SCLK, CS#, IO0, IO1 - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - Highest Performance Serial Flash - 1 I/O 104MHz for fast read - 2 I/O Dual I/O Data transfer up to 208Mbits/s - 4 I/O Quad I/O Data transfer up to 416Mbits/s - Power Supply and Low Power Consumption - Single 2.3V to 3.6V supply - 7μA standby current,0.2μA deep power down current - 2.0m A active read current at 33MHz, 2.0m A active program or erase current - Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Erase,Uniform 4K-byte Sector Erase - Uniform 32/64K-byte Block Erase,Program 1 to 256 byte per programmable page - Minimum 100,000 Program/Erase Cycles, More than 20-year data retention - Fast Program and Erase...
