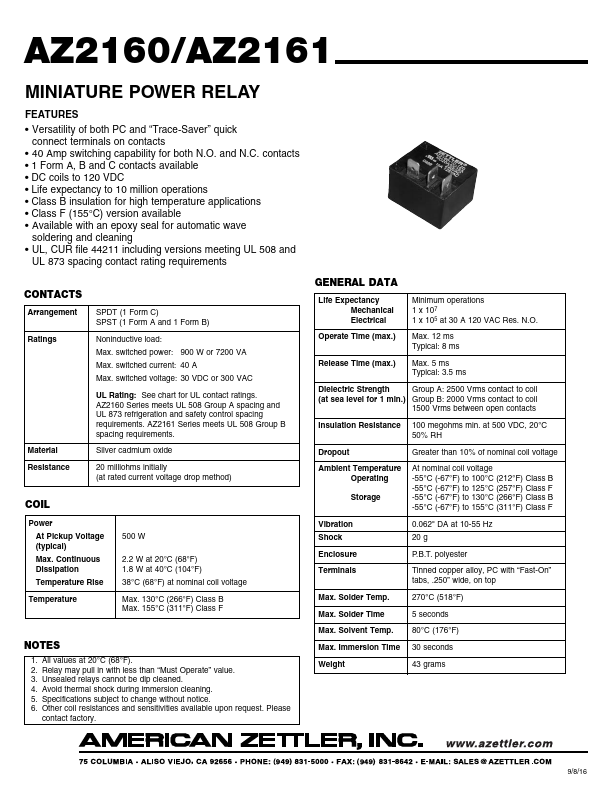

AZ2161
FEATURES
- Versatility of both PC and “Trace-Saver” quick connect terminals on contacts
- 40 Amp switching capability for both N.O. and N.C. contacts
- 1 Form A, B and C contacts available
- DC coils to 120 VDC
- Life expectancy to 10 million operations
- Class B insulation for high temperature applications
- Class F (155°C) version available
- Available with an epoxy seal for automatic wave soldering and cleaning
- UL, CUR file 44211 including versions meeting UL 508 and
UL 873 spacing contact rating requirements
CONTACTS
Arrangement Ratings
Material Resistance
SPDT (1 Form C) SPST (1 Form A and 1 Form B)
Noninductive load: Max. switched power: 900 W or 7200 VA Max. switched current: 40 A Max. switched voltage: 30 VDC or 300 VAC

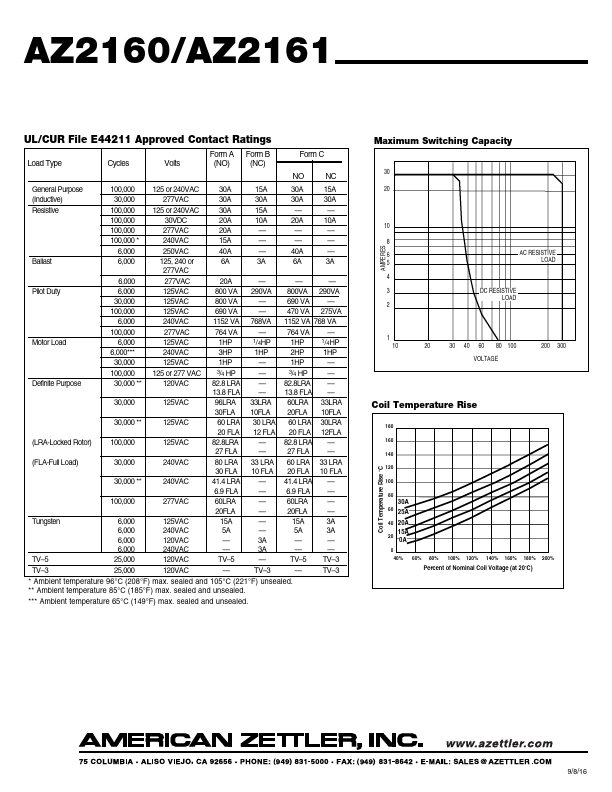

UL Rating: See chart for UL contact ratings. AZ2160 Series meets UL 508 Group A spacing and UL 873 refrigeration and safety control spacing requirements. AZ2161 Series meets UL 508 Group B spacing requirements.
Silver cadmium oxide
20 milliohms initially...
