AZ2160 - MINIATURE POWER RELAY

American Zettler

Key Features

Versatility of both PC and “Trace-Saver” quick connect terminals on contacts.
40 Amp switching capability for both N. O. and N. C. contacts.
1 Form A, B and C contacts available.
DC coils to 120 VDC.
Life expectancy to 10 million operations.
Class B insulation for high temperature.

AZ2160 miniature power relay by American Zettler - Datasheet Preview

Datasheet Details

Part number	AZ2160
Manufacturer	American Zettler
File Size	100.00 KB
Description	MINIATURE POWER RELAY
Datasheet	AZ2160 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AZ2100	MINIATURE POWER RELAY	ETC
AZ2117	LOW DROPOUT LINEAR REGULATOR	Diodes
AZ2150	MINIATURE POWER RELAY	ZETTLER Electronics
AZ2185	3A LOW DROPOUT LINEAR REGULATOR	Diodes
AZ2085	3A LOW DROPOUT LINEAR REGULATOR	Diodes

Other Datasheets by American Zettler

Part Number	Description
AZ2161	MINIATURE POWER RELAY
AZ2110	40A MINIATURE POWER RELAY
AZ2120	40A MINIATURE POWER RELAY
AZ2150W	MINIATURE POWER RELAY
AZ2505	POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

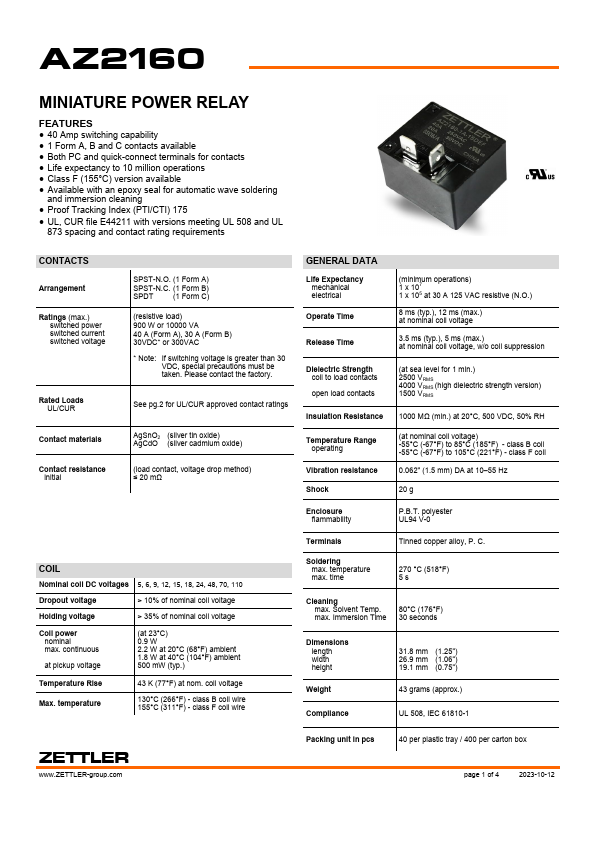

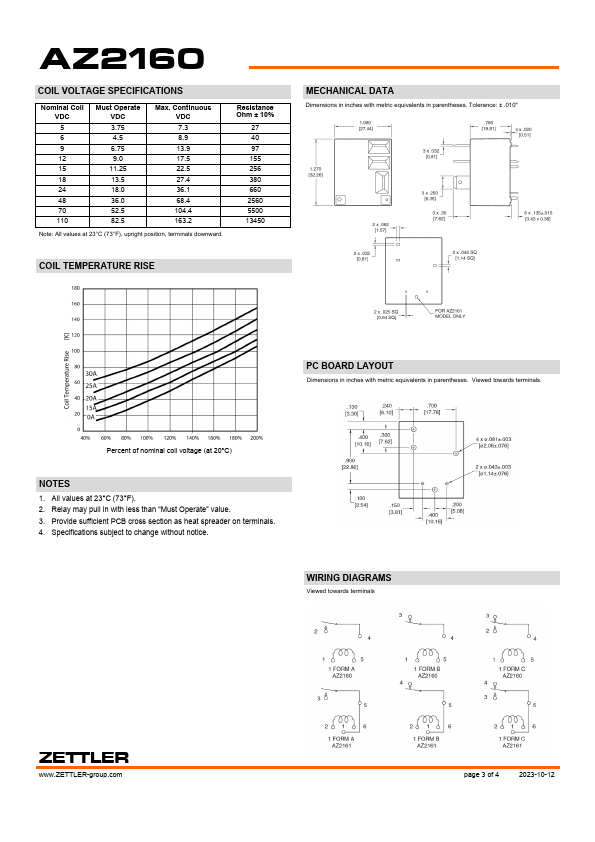

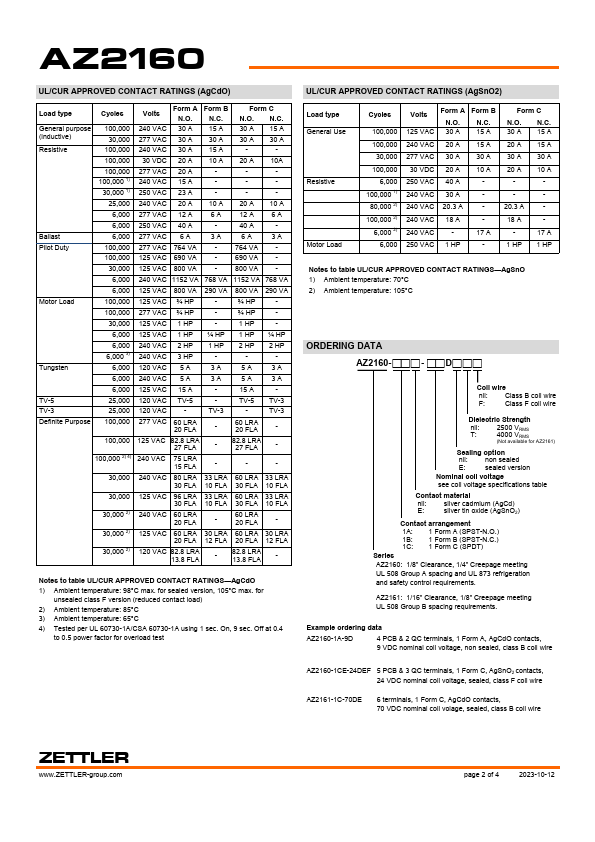

AZ2160/AZ2161 MINIATURE POWER RELAY FEATURES • Versatility of both PC and “Trace-Saver” quick connect terminals on contacts • 40 Amp switching capability for both N.O. and N.C. contacts • 1 Form A, B and C contacts available • DC coils to 120 VDC • Life expectancy to 10 million operations • Class B insulation for high temperature applications • Class F (155°C) version available • Available with an epoxy seal for automatic wave soldering and cleaning • UL, CUR file 44211 including versions meeting UL 508 and UL 873 spacing contact rating requirements CONTACTS Arrangement Ratings Material Resistance SPDT (1 Form C) SPST (1 Form A and 1 Form B) Noninductive load: Max. switched power: 900 W or 7200 VA Max. switched current: 40 A Max.
