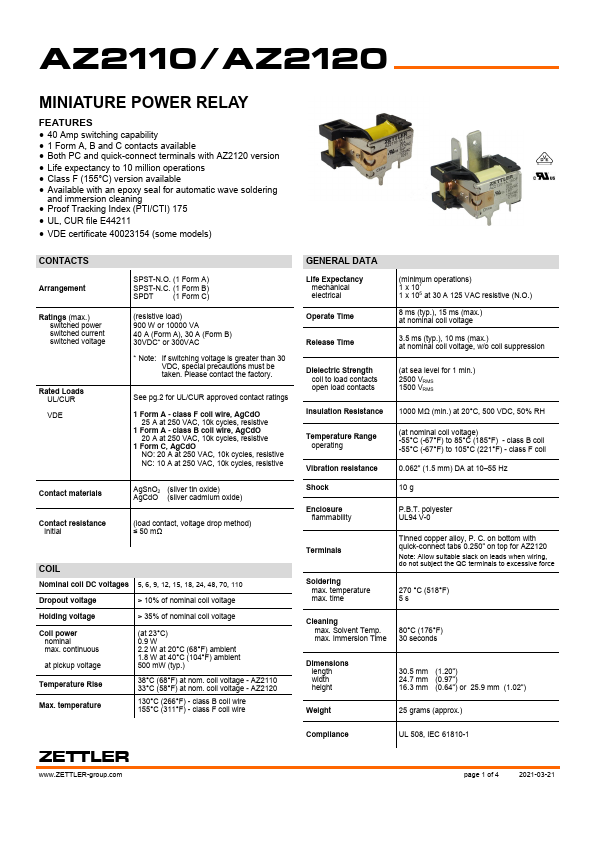

FEATURES - 40 Amp switching capability - 1 Form A, B and C contacts available - Both PC and quick-connect terminals with AZ2120 version - Life expectancy to 10 million operations - Class F (155°C) version available - Available with an epoxy seal for automatic wave soldering and immersion cleaning - Proof Tracking Index (PTI/CTI) 175 - UL, CUR file E44211 - VDE certificate 40023154 (some models) CONTACTS Arrangement Ratings (max.) switched power switched current switched voltage Rated Loads UL/CUR VDE Contact materials Contact resistance initial SPST-N.O. (1 Form A) SPST-N.C. (1 Form B) SPDT (1 Form C) (resistive load) 900 W or 10000 VA 40 A (Form A), 30 A (Form B) 30VDC- or 300VAC - Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. See pg.2 for UL/CUR approved contact ratings 1 Form A - class F coil wire, Ag Cd O 25 A at 250 VAC, 10k cycles, resistive 1 Form A - class B coil wire, Ag Cd O 20 A at 250 VAC, 10k cycles, resistive 1 Form C, Ag Cd O NO: 20 A at 250 VAC, 10k cycles, resistive NC: 10 A at 250 VAC, 10k cycles, resistive Ag Sn O2 (silver tin oxide) Ag Cd O (silver cadmium oxide) (load contact, voltage drop method) ≤ 50 mΩ COIL Nominal coil DC voltages 5, 6, 9, 12, 15, 18, 24, 48, 70, 110 Dropout voltage > 10% of nominal coil voltage Holding voltage > 35% of nominal coil voltage Coil power nominal max. continuous at pickup voltage Temperature Rise Max. temperature (at 23°C) 0.9 W 2.2 W at 20°C (68°F) ambient 1.8 W at 40°C (104°F) ambient 500 m W (typ.) 38°C (68°F) at nom. coil voltage - AZ2110 33°C (58°F) at nom. coil voltage -...
