AZ2150W - MINIATURE POWER RELAY

American Zettler

Key Features

1.75 mm contact gap.
DC coils up to 48V.
High dielectric strength version available.
All plastics PTI 250.
Epoxy sealed versions available.
UL Class F (155°C) standard.
UL, CUR E44211.
VDE 40023154.

AZ2150W miniature power relay by American Zettler - Datasheet Preview

Datasheet Details

Part number	AZ2150W
Manufacturer	American Zettler
File Size	344.09 KB
Description	MINIATURE POWER RELAY
Datasheet	AZ2150W Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AZ2150	MINIATURE POWER RELAY	ZETTLER Electronics
AZ2100	MINIATURE POWER RELAY	ETC
AZ2117	LOW DROPOUT LINEAR REGULATOR	Diodes
AZ2185	3A LOW DROPOUT LINEAR REGULATOR	Diodes
AZ2085	3A LOW DROPOUT LINEAR REGULATOR	Diodes

Other Datasheets by American Zettler

Part Number	Description
AZ2110	40A MINIATURE POWER RELAY
AZ2120	40A MINIATURE POWER RELAY
AZ2160	MINIATURE POWER RELAY
AZ2161	MINIATURE POWER RELAY
AZ2505	POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

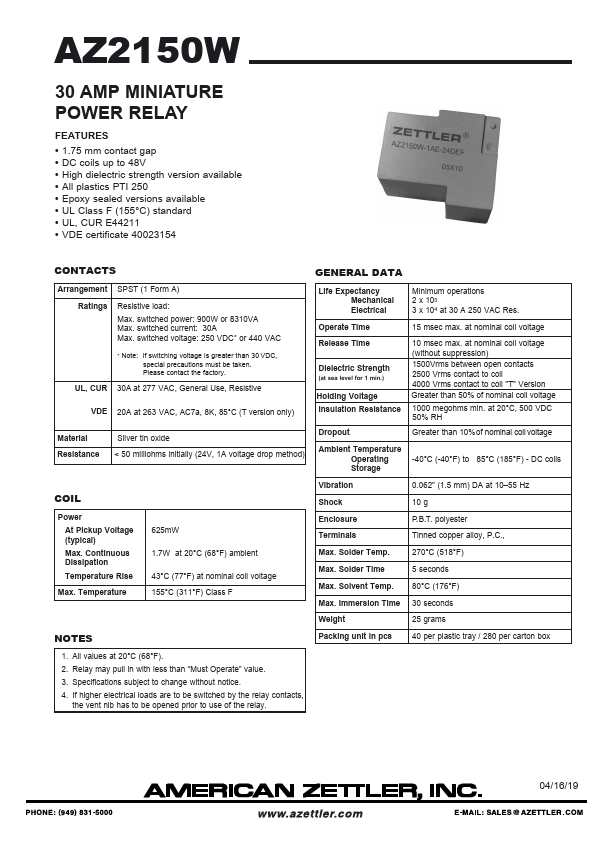

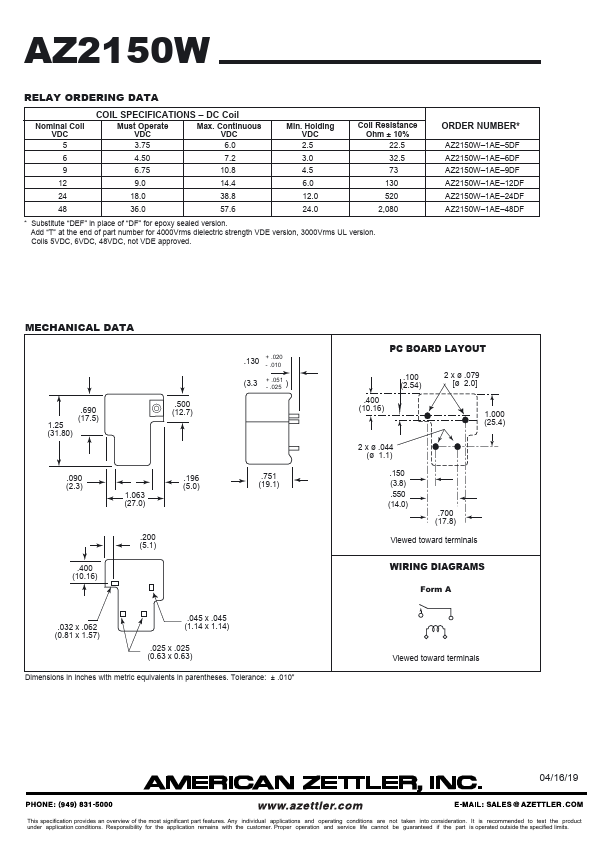

AZ2150W 30 AMP MINIATURE POWER RELAY FEATURES • 1.75 mm contact gap • DC coils up to 48V • High dielectric strength version available • All plastics PTI 250 • Epoxy sealed versions available • UL Class F (155°C) standard • UL, CUR E44211 • VDE 40023154 CONTACTS Arrangement SPST (1 Form A) Ratings Resistive load: Max. switched power: 900 W or 8310 VA Max. switched current: 30 A Max. switched voltage: 240 VDC* or 440 VAC * Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. UL, CUR 30 A at 277 VAC, General Use, Resistive VDE 20 A at 250 VAC, AC7a Material Resistance Silver tin oxide < 50 milliohms initially COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max. Temperature 500 mW 1.
