Datasheet Summary

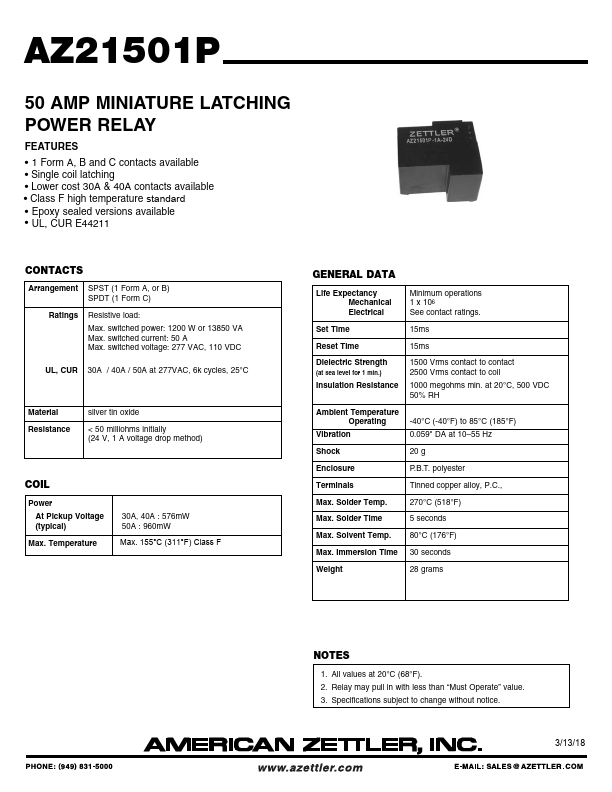

50 AMP MINIATURE LATCHING POWER RELAY
Features
- 1 Form A, B and C contacts available
- Single coil latching
- Lower cost 30A & 40A contacts available
- Class F high temperature standard
- Epoxy sealed versions available
- UL, CUR E44211
CONTACTS
Arrangement SPST (1 Form A, or B) SPDT (1 Form C)
Ratings
Resistive load:
Max. switched power: 1200 W or 13850 VA Max. switched current: 50 A Max. switched voltage: 277 VAC, 110 VDC
UL, CUR 30A / 40A / 50A at 277VAC, 6k cycles, 25°C
Material Resistance silver tin oxide
< 50 milliohms initially (24 V, 1 A voltage drop method)
COIL
Power At Pickup Voltage (typical)
Max. Temperature
30A, 40A : 576mW 50A : 960mW
Max. 155°C (311°F)...
