AZ2150 - MINIATURE POWER RELAY

ZETTLER Electronics

Key Features

30 Amp switching capability for both N. O. and N. C. contacts.
1 Form A, B and C contacts available.
DC coils to 120 VDC.
Life expectancy to 10 million operations.
Class B insulation standard.
Class F (155°C) version available.
Available with an epoxy seal for automatic wave soldering and immersion cleaning.
Proof Tracking Index (PTI/CTI) 175.
UL, CUR file E44211 including versions meeting UL 508 and UL 873 spacing a.

AZ2150 miniature power relay by ZETTLER Electronics - Datasheet Preview

Datasheet Details

Part number	AZ2150
Manufacturer	ZETTLER Electronics
File Size	100.00 KB
Description	MINIATURE POWER RELAY
Datasheet	AZ2150 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AZ2150W	MINIATURE POWER RELAY	American Zettler
AZ2100	MINIATURE POWER RELAY	ETC
AZ2110	40A MINIATURE POWER RELAY	American Zettler
AZ2117	LOW DROPOUT LINEAR REGULATOR	Diodes
AZ2120	40A MINIATURE POWER RELAY	American Zettler

Other Datasheets by ZETTLER Electronics

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

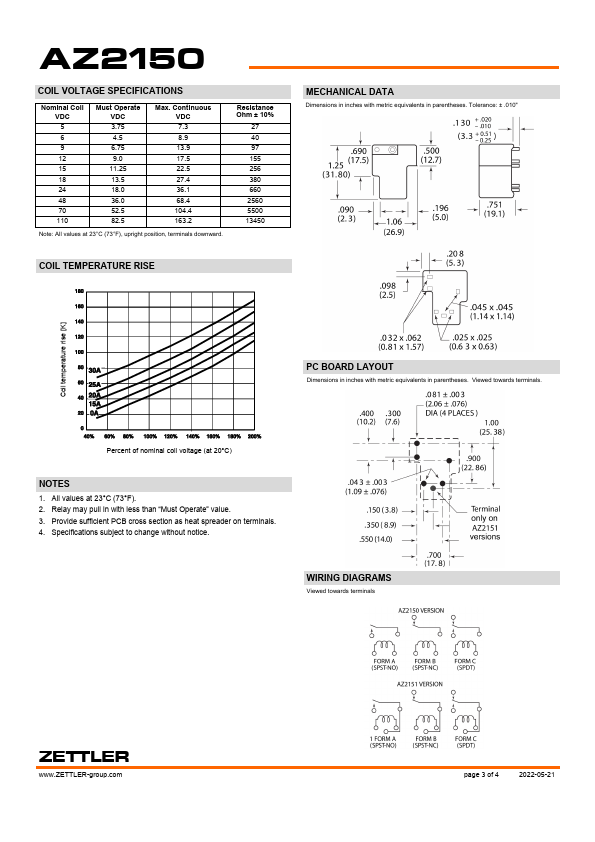

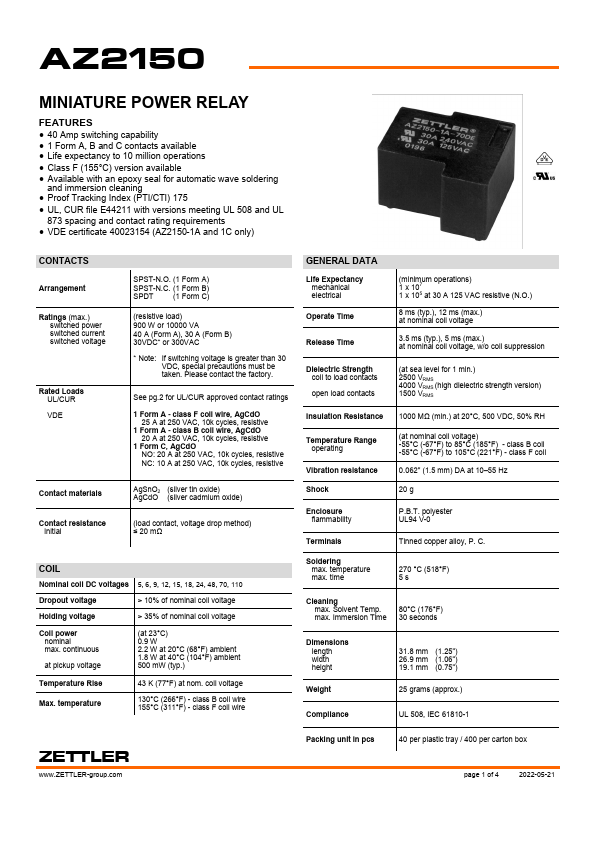

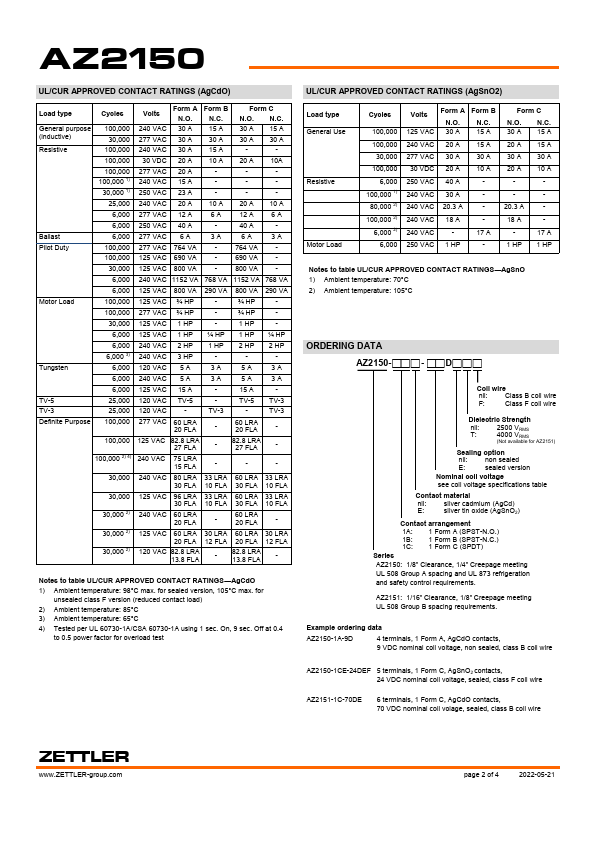

www.DataSheet4U.com AZ2150 MINIATURE POWER RELAY FEATURES • 30 Amp switching capability for both N.O. and N.C. contacts • 1 Form A, B and C contacts available • DC coils to 120 VDC • Life expectancy to 10 million operations • Class B insulation standard • Class F (155°C) version available • Available with an epoxy seal for automatic wave soldering and immersion cleaning • Proof Tracking Index (PTI/CTI) 175 • UL, CUR file E44211 including versions meeting UL 508 and UL 873 spacing and contact rating requirements; VDE 132710 ÜG (some models) GENERAL DATA Life Expectancy Mechanical Electrical Operate Time (max.) Release Time (max.) Minimum operations 1 x 107 1 x 105 at 30 A 120 VAC Res. (N.O.) Max. 12 ms Typical: 8 ms Max. 5 ms Typical: 3.
