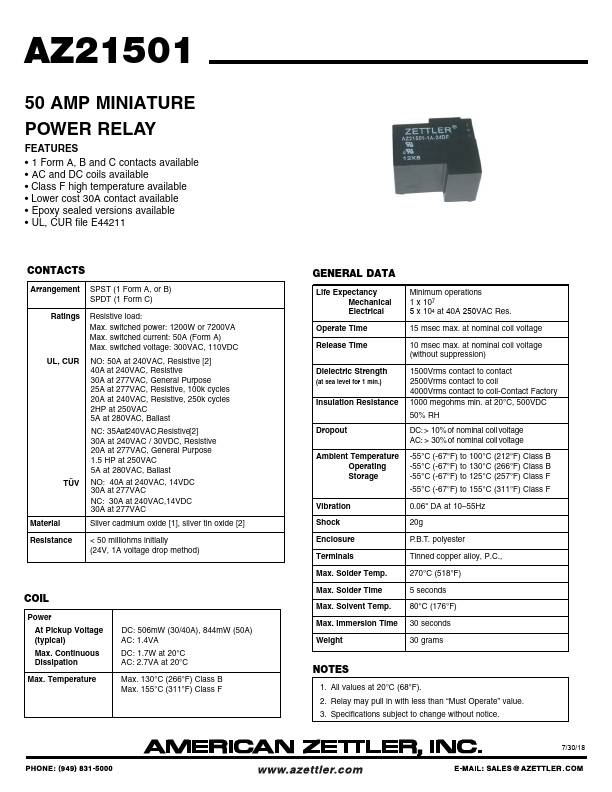

Datasheet Summary
50 AMP MINIATURE POWER RELAY
Features
- 1 Form A, B and C contacts available
- AC and DC coils available
- Class F high temperature available
- Lower cost 30A contact available
- Epoxy sealed versions available
- UL, CUR file E44211
CONTACTS
Arrangement SPST (1 Form A, or B) SPDT (1 Form C)
Ratings UL, CUR
TÜV Material
Resistive load:
Max. switched power: 1200W or 7200VA Max. switched current: 50A (Form A) Max. switched voltage: 300VAC, 110VDC
NO: 50A at 240VAC, Resistive [2] 40A at 240VAC, Resistive 30A at 277VAC, General Purpose 25A at 277VAC, Resistive, 100k cycles 20A at 240VAC, Resistive, 250k cycles 2HP at 250VAC 5A at 280VAC, Ballast
NC: 35Aat240VAC,Resistive[2] 30A at...
