AZ2120 - 40A MINIATURE POWER RELAY

Download the AZ2120 datasheet PDF. This datasheet also covers the AZ2110 variant, as both devices belong to the same 40a miniature power relay family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • 40 Amp switching capability.
  • 1 Form A, B and C contacts available.
  • DC coils to 120 VDC.
  • Low cost.
  • Life expectancy to 10 million operations.
  • Class B insulation standard.
  • Class F (155°C) version available.
  • Versatility of both PC and “Trace Saver” quick-connect terminals on contacts offered on the AZ2120 version.
  • Proof Tracking Index (PTI/CTI) 175.
  • UL, CUR file E44211 including versions meeting UL 508 and UL.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AZ2110-AmericanZettler.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AZ2120
Manufacturer American Zettler
File Size 321.79 KB
Description 40A MINIATURE POWER RELAY
Datasheet download datasheet AZ2120 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AZ2100 MINIATURE POWER RELAY ETC
AZ2117 LOW DROPOUT LINEAR REGULATOR Diodes
AZ2150 MINIATURE POWER RELAY ZETTLER Electronics
AZ2185 3A LOW DROPOUT LINEAR REGULATOR Diodes
AZ2085 3A LOW DROPOUT LINEAR REGULATOR Diodes

Other Datasheets by American Zettler

Part Number Description
AZ2110 40A MINIATURE POWER RELAY
AZ2150W MINIATURE POWER RELAY
AZ2160 MINIATURE POWER RELAY
AZ2161 MINIATURE POWER RELAY
AZ2505 POWER RELAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

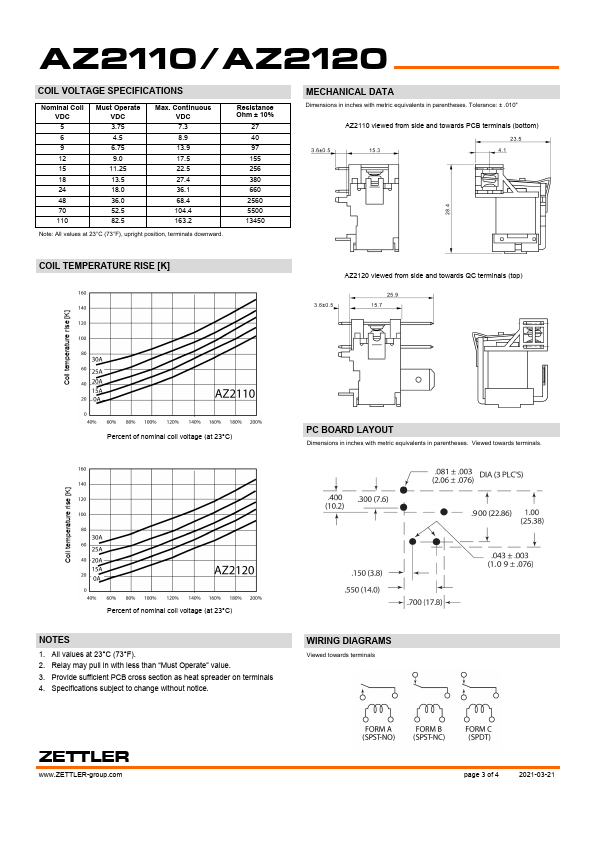

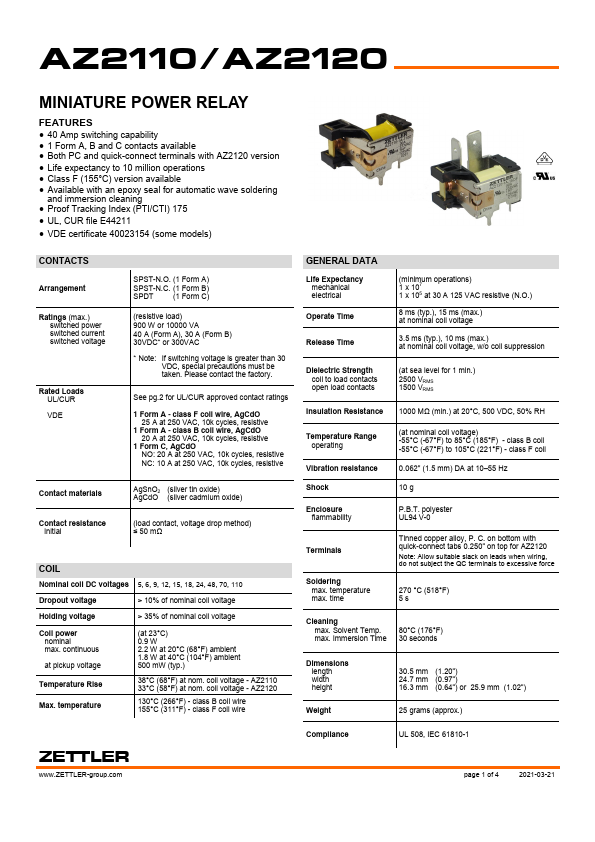

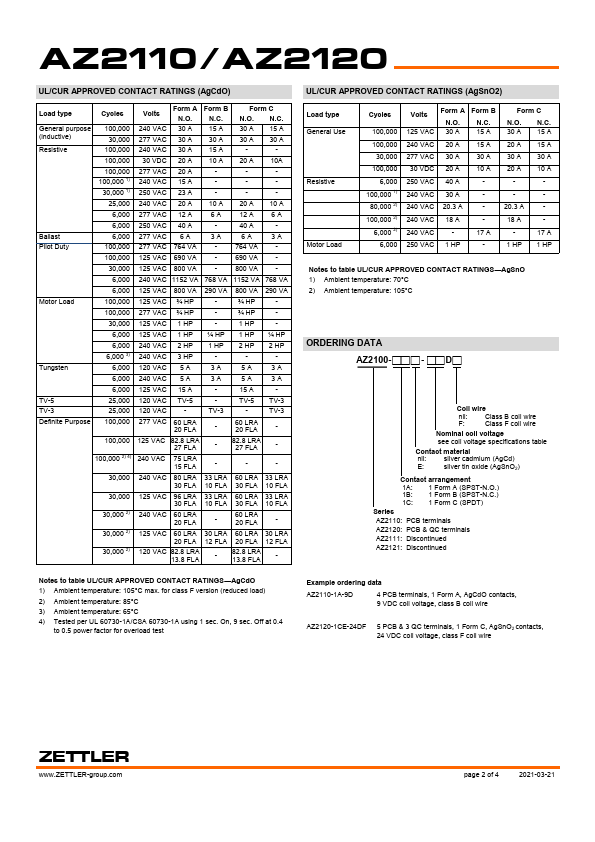

AZ2110/AZ2120 40A MINIATURE POWER RELAY FEATURES • 40 Amp switching capability • 1 Form A, B and C contacts available • DC coils to 120 VDC • Low cost • Life expectancy to 10 million operations • Class B insulation standard • Class F (155°C) version available • Versatility of both PC and “Trace Saver” quick-connect terminals on contacts offered on the AZ2120 version • Proof Tracking Index (PTI/CTI) 175 • UL, CUR file E44211 including versions meeting UL 508 and UL 873 spacing and contact rating requirements; VDE 40023154 (some models) CONTACTS Arrangement Ratings SPDT (1 Form C) SPST (1 Form A and 1 Form B) Resistive load: Max. switched power: 900W or 10000VA Max. switched current: 40A (Form A) 30A (Form B) Max.
