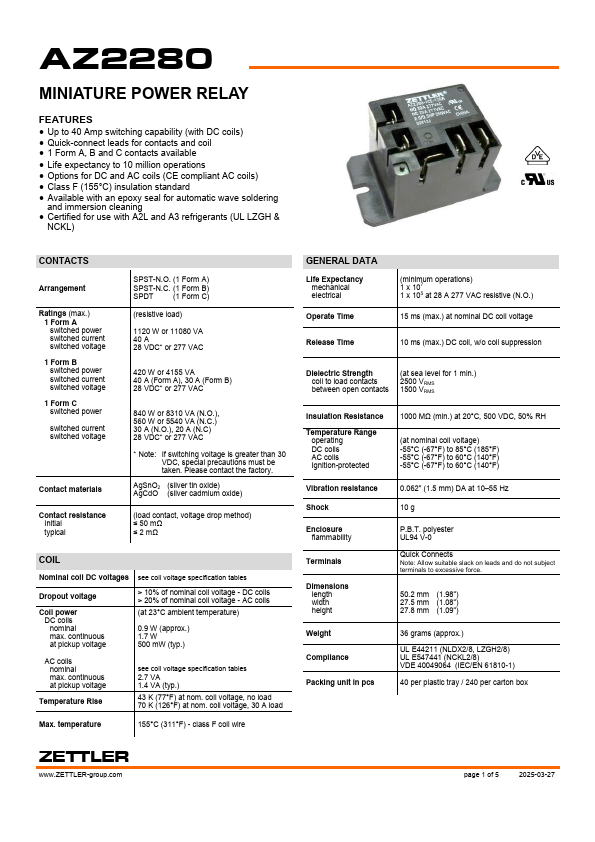

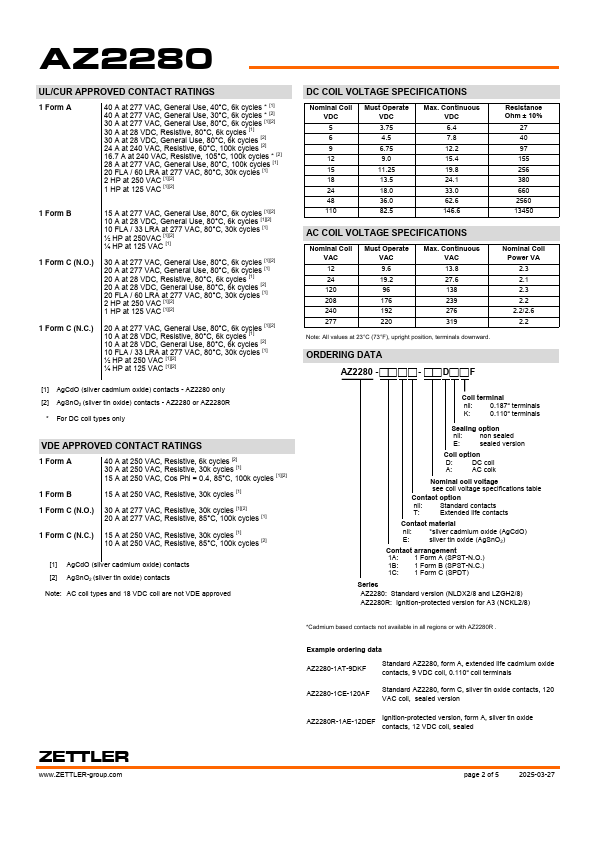

AZ2280
FEATURES
- Up to 40 Amp switching capability (with DC coils)
- Quick-connect leads for contacts and coil
- 1 Form A, B and C contacts available
- Life expectancy to 10 million operations
- Options for DC and AC coils (CE pliant AC coils)
- Class F (155°C) insulation standard
- Available with an epoxy seal for automatic wave soldering and immersion cleaning
- Certified for use with A2L and A3 refrigerants (UL LZGH &
NCKL)
CONTACTS
Arrangement
Ratings (max.) 1 Form A switched power switched current switched voltage 1 Form B switched power switched current switched voltage 1 Form C switched power switched current switched voltage
Contact materials
Contact resistance Initial typical
SPST-N.O. (1 Form A) SPST-N.C. (1 Form B) SPDT (1 Form C)
(resistive load)
1120 W or 11080 VA 40 A 28 VDC- or 277 VAC
420 W or 4155 VA 40 A (Form A), 30 A (Form B) 28 VDC- or 277 VAC
840 W or 8310 VA (N.O.), 560 W or 5540 VA (N.C.) 30 A (N.O.), 20 A (N.C) 28 VDC- or 277 VAC
- Note: If switching voltage is...
