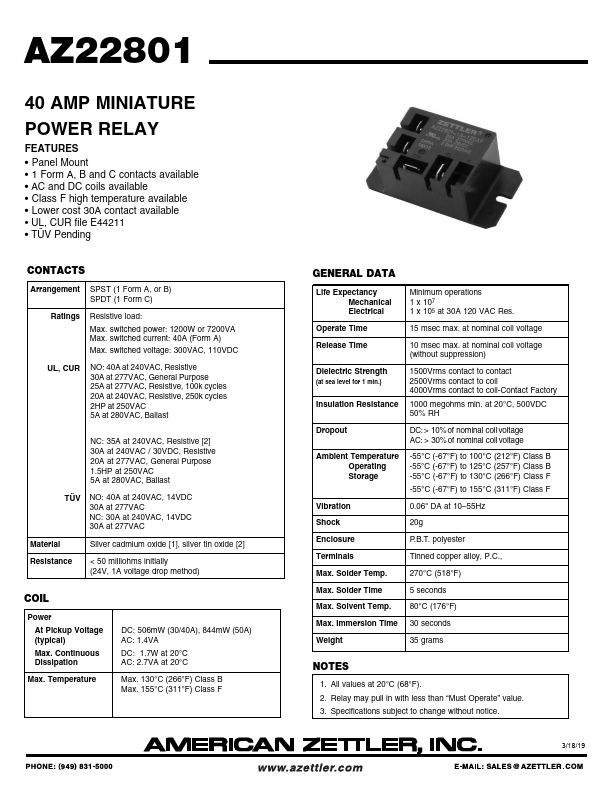

Datasheet Summary
40 AMP MINIATURE
POWER RELAY
Features
- Panel Mount
- 1 Form A, B and C contacts available
- AC and DC coils available
- Class F high temperature available
- Lower cost 30A contact available
- UL, CUR file E44211
- TÜV Pending
CONTACTS
Arrangement SPST (1 Form A, or B) SPDT (1 Form C)
Ratings
Resistive load:
Max. switched power: 1200W or 7200VA Max. switched current: 40A (Form A) Max. switched voltage: 300VAC, 110VDC
UL, CUR
NO: 40A at 240VAC, Resistive 30A at 277VAC, General Purpose 25A at 277VAC, Resistive, 100k cycles 20A at 240VAC, Resistive, 250k cycles 2HP at 250VAC 5A at 280VAC, Ballast
NC: 35A at 240VAC, Resistive [2] 30A at 240VAC / 30VDC, Resistive 20A at 277VAC,...
