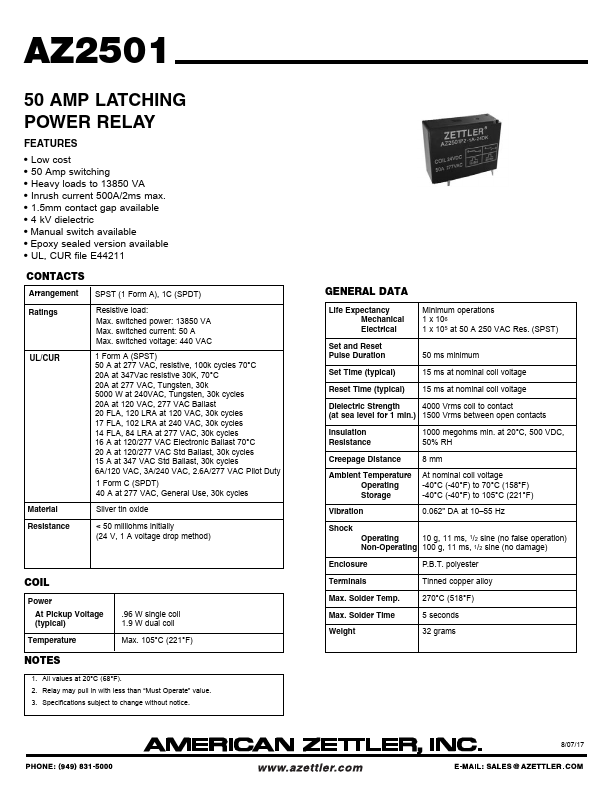

AZ2501 Overview
Key Features
- 50 Amp switching
- Heavy loads to 13850 VA
- Inrush current 500A/2ms max
- 1.5mm contact gap available
- 4 kV dielectric
- Manual switch available
- Epoxy sealed version available
- All values at 20°C (68°F)
- Relay may pull in with less than “Must Operate” value
