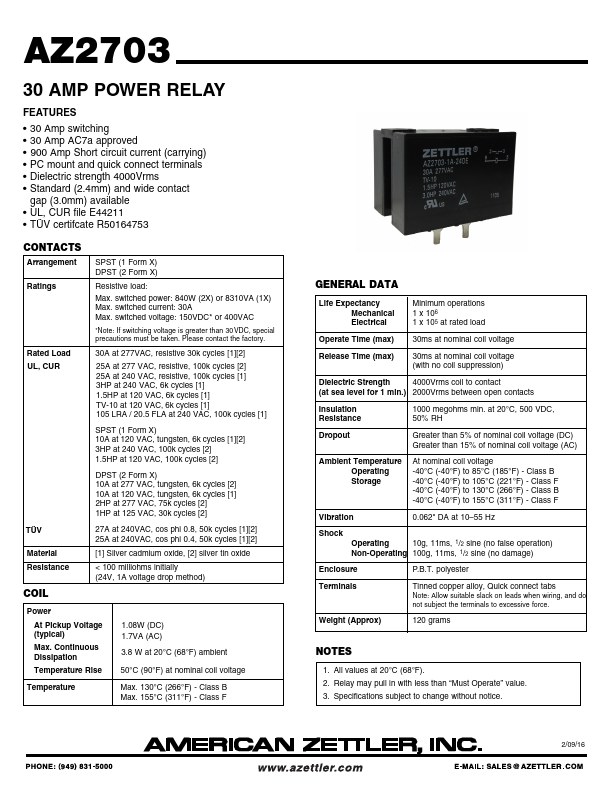

AZ2703 Description
AZ2703 30 AMP POWER RELAY.
AZ2703 Key Features
- 30 Amp switching
- 30 Amp AC7a approved
- 900 Amp Short circuit current (carrying)
- PC mount and quick connect terminals
- Dielectric strength 4000Vrms
- Standard (2.4mm) and wide contact
- UL, CUR file E44211
- TÜV certifcate R50164753
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory
- Class B Max. 155°C (311°F)
