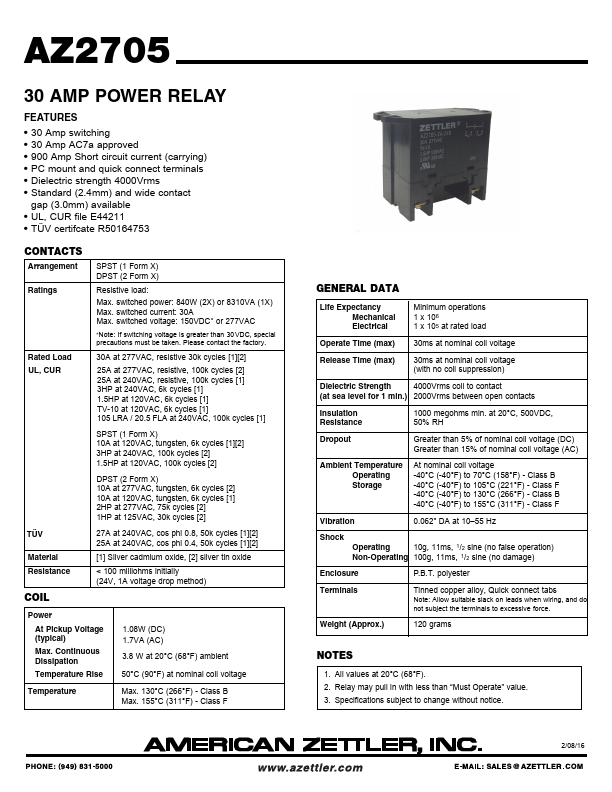

Datasheet Summary
30 AMP POWER RELAY
Features
- 30 Amp switching
- 30 Amp AC7a approved
- 900 Amp Short circuit current (carrying)
- PC mount and quick connect terminals
- Dielectric strength 4000Vrms
- Standard (2.4mm) and wide contact gap (3.0mm) available
- UL, CUR file E44211
- TÜV certifcate R50164753
CONTACTS
Arrangement Ratings
Rated Load UL, CUR
TÜV Material Resistance
COIL
SPST (1 Form X) DPST (2 Form X)
Resistive load:
Max. switched power: 840W (2X) or 8310VA (1X) Max. switched current: 30A Max. switched voltage: 150VDC- or 277VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
30A at 277VAC, resistive 30k cycles...
