AZ576 - POWER RELAY

Features

  • Class F standard.
  • Dielectric strength 5000Vrms.
  • Low cost.
  • Epoxy sealed versions available.
  • 20 Amp switching.
  • UL E44211.
  • TUV 50333135.

📥 Download Datasheet

Datasheet preview – AZ576

Datasheet Details

Part number AZ576
Manufacturer Zettler
File Size 1.11 MB
Description POWER RELAY
Datasheet download datasheet AZ576 Datasheet
Additional preview pages of the AZ576 datasheet.

📁 Similar Datasheet

  • AZ5725-01F - TVS Diode (Leiditech)
  • AZ574 - HIGH PRECISE VOLTAGE REFERENCE (BCD Semiconductor)
  • AZ5 - SUBMINIATURE PC BOARD RELAY (American Zettler)
  • AZ50 - Full Wave Rectifier (Philips)
  • AZ5123 - Transient Voltage Suppressors (SXSEMI)
  • AZ5123-01F - TVS Diode (Leiditech)
  • AZ5123-01F - Transient Voltage Suppressors (SXSEMI)
  • AZ5123-01H - Transient Voltage Suppressors (SXSEMI)
  • AZ5123-01H - TVS (UMW)
  • AZ5125-02F - TVS (Amazing Micro)
Other Datasheets by Zettler

Full PDF Text Transcription

Click to expand full text

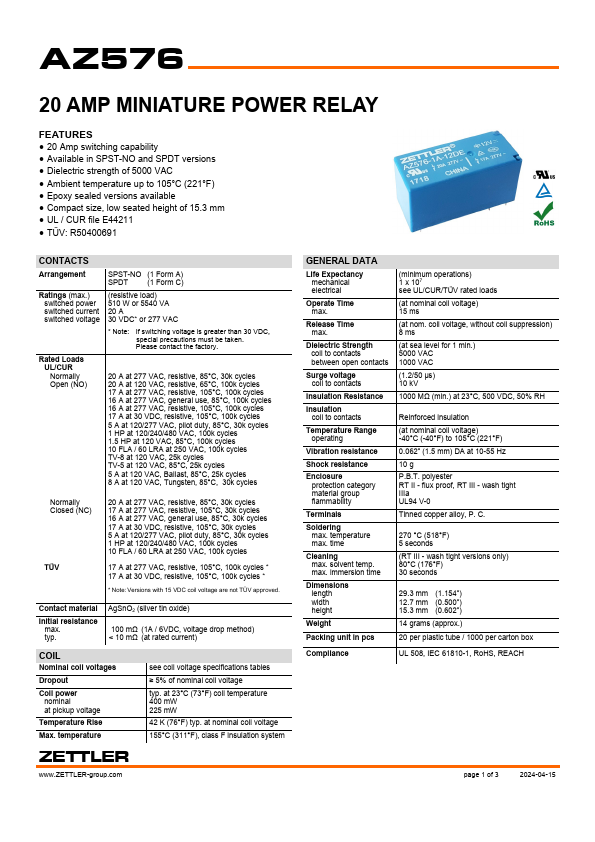

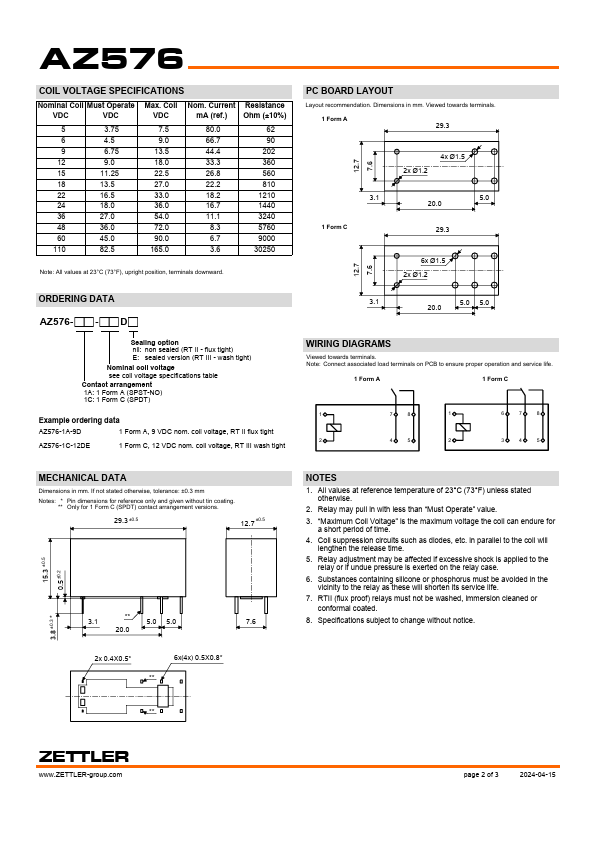

AZ576 20A MINIATURE POWER RELAY FEATURES • Class F standard • Dielectric strength 5000Vrms • Low cost • Epoxy sealed versions available • 20 Amp switching • UL E44211 • TUV 50333135 CONTACTS Arrangement SPST (1 Form A) SPDT (1 Form C) Ratings Resistive load: Max. switched power: 510W or 5540VA Max. switched current: 20A Max. switched voltage: 30VDC or 277VAC *Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. Rated Load UL, CUR 20A at 277VAC Resistive, 30k cycles, 85°C 5A at 120/277VAC Pilot Duty, 30k cycles, 85°C 1HP at 120/240/480VAC, 100k cycles, 40°C 10FLA / 60LRA at 250VAC, 100k cycles, 40°C (N.O.
